  15. Monolithic pilot light, Harmony XB7, plastic, red, 22mm, plain lens for BA9s bulb, lt 250V

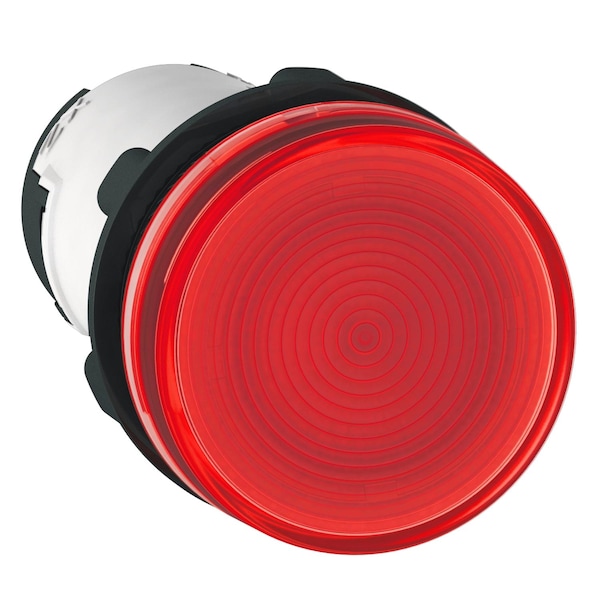

Schneider Electric Monolithic pilot light, Harmony XB7, plastic, red, 22mm, plain lens for BA9s bulb, lt 250V XB7EV64P - main

Monolithic pilot light, Harmony XB7, plastic, red, 22mm, plain lens for BA9s bulb, lt 250V

  • Mfr # XB7EV64P

  • Zoro # G7655963

product price: $19.59
/ea
Sold in multiples of 10 for $195.90

Key Features

Voltage
250V
Color
Red
Lamp Type
Incandescent
Shape
Round
Terminal Connection
Faston Connectors; Forked type tag connectors; Screw Clamp terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB7EV64P
Zoro #
G7655963
UPC #
-
Country of Origin
Indonesia

Dimensions

Height
29 mm
Length
54 mm
Width
29 mm
Mounting Diameter
22 mm

Details

Item
Direct Supply Red Pilot Light
Voltage
250V
Color
Red
Lamp Type
Incandescent
Shape
Round
Terminal Connection
Faston Connectors; Forked type tag connectors; Screw Clamp terminals
Contact Form
(X1-X2)PL
Standards
UL 508; JIS C8201-5-1; CSA C22.2 No 14; EN/IEC 60947-5-1; EN/IEC 60947-1; JIS C8201-1
NEMA Rating
12
IP Rating
IP20/IP54
Type
Steady Signal
Device Short Name
XB7
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Overvoltage Category
class II IEC 60536
Light Block Supply
direct
Tightening Torque
0.8-1.2 N.m IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
[Us] Rated Supply Voltage
<= 250 V
Compatibility Code
XB7
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Ambient Air Temperature For Operation
-25-55°C
Connections - Terminals
Faston connectors 6.35 x 0.8 mm IEC 60947-1, forked type tag connectors 6.5 mm IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Light Source
incandescent (bulb not included)
Protective Treatment
TH
Shape of Screw Head
cross JIS No 1, cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Electromagnetic Compatibility
disturbing field emission class B conforming to IEC 55011
Device Presentation
monolithic product
Signalling Type
steady
Operator Additional Information
with plain lens
Nema Degree of Protection
NEMA 12
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
Fixing Mode
fixing nut beneath head 2-2.4 N.m
Bulb Base
BA 9s
Product or Component Type
pilot light
Range of Product
Harmony XB7
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree of Protection
IP20 IEC 60529 rear face), IP54 IEC 60529 front face)

Description

Direct Supply Red Pilot Light
