  13. Multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s.10h, pulse delay, 24V DC or 24.240V AC DC

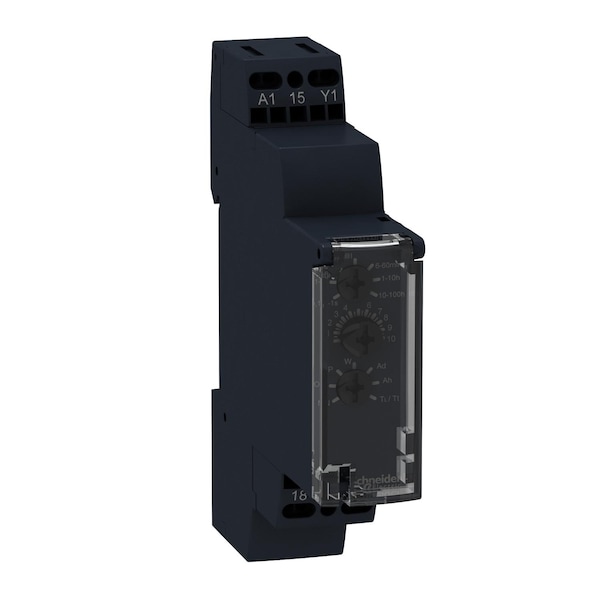

Schneider Electric Multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s.10h, pulse delay, 24V DC or 24.240V AC DC RE17RMXMU - main

Multifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s.10h, pulse delay, 24V DC or 24.240V AC DC

  • Mfr # RE17RMXMU

  • Zoro # G5956883

product price: $84.55
/ea
Free Shipping & Returns

Key Features

Delay Function
Bistable, Interval, Pulse Signal, Safe Guard
Number of Delay Functions
4
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 hr
Current Rating
8 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RE17RMXMU
Zoro #
G5956883
UPC #
-
Country of Origin
Indonesia

Dimensions

Depth
72 mm
Width
17.5 mm
Height
90 mm

Details

Item
Time Delay Relay
Delay Function
Bistable, Interval, Pulse Signal, Safe Guard
Number of Delay Functions
4
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 hr
Current Rating
8 A
Power Consumption - Relay
0-32 VA 240 V AC; 0.6 W 24 V DC
Standards
cULus|| CSA
Contact Material
cadmium free
Input Voltage
250 V
Hz
50/60 Hz
Adjustment Method - Timer
selector switch front panel
Input or Control Voltage Range
0.85...1.1 Us
Electrical Connection
35 mm DIN rail conforming to EN/IEC 60715
Type of Output
relay
Number of Functions
9
Local Signalling
LED indicator on steady: relay energised, no timing in progress, LED indicator 80 % ON and 20 % OFF flashing: timing in progress, LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
Maximum Switching Voltage
250 V AC
Compatibility Code
RE17
Housing Material
self-extinguishing
Impulse Duration
100 ms with load in parallel typical, 30 ms typical
Tightening Torque
0.6-1 N.m IEC 60947-1
Maximum Power Consumption In W
0.6 W 24 V DC
Minimum Switching Current
10 mA 5 V DC
Nominal Output Current
8A
Ambient Air Temperature For Storage
-30-60°C
Marking
CE
Relative Humidity
93-93 % without condensation IEC 60068-2-30
Mounting Support
35 mm DIN rail conforming to IEC 60715
Ambient Air Temperature For Operation
-20-60°C
Electrical Durability
100000 cycles resistive 8 A 250 V AC
Mechanical Durability
10000000 cycles
Functionality
multifunction
Shock Resistance
15 gn 11 ms IEC 60068-2-27
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Maximum Delay Response
100 ms
[Us] Rated Supply Voltage
24...240 V AC 50/60 Hz, 24 V DC
Maximum Switching Current
8 A AC/DC
Temperature Drift
+/- 0.05 %/°C
Creepage Distance
4 kV/3 IEC 60664-1
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2, electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2, susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5, conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6, voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11, voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Setting Accuracy of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Immunity To Microbreaks
20 ms
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
Voltage Drift
+/- 0.2 %/V
Range of Product
Harmony Timer Relays
Supply Frequency
50...60 Hz +/- 5 %
Reset Time
120 ms on de-energisation typical
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Ip Degree of Protection
IP20 IEC 60529 terminal block), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
Mounting Position
any position in relation to normal vertical mounting plane
Operating Rate In Hz
10 Hz
On-Load Factor
1
Breaking Capacity
2000 VA
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2/50µs
Device Short Name
RE17R
Time Delay Type
Ad, Ah, N, O, P, Pt, TI, Tt, W

Description

Nine Function Timer,240V,8A
