- Item

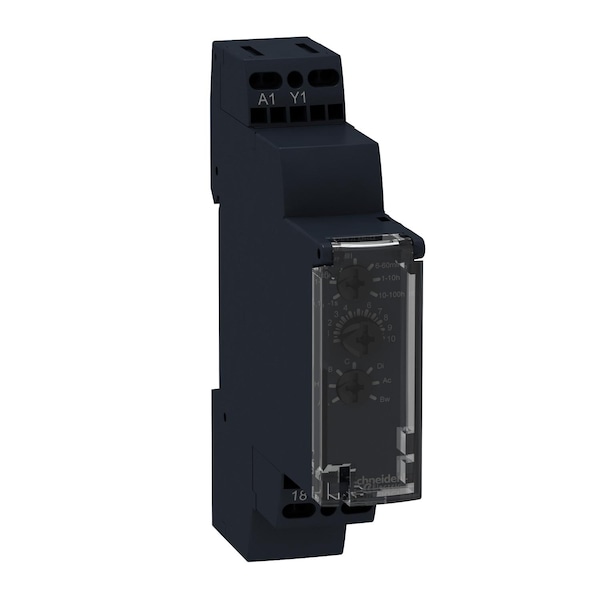

- Multifunction Time Delay Relay
- Delay Function
- Multi Function
- Number of Delay Functions
- 10
- Minimum Time Setting
- 0.1 sec
- Maximum Time Setting
- 100 hr
- Electrical Connection
- 35 mm DIN rail conforming to EN/IEC 60715
- Type of Output
- solid state
- Adjustment Method - Timer
- selector switch front panel
- Power Consumption - Relay
- 0-3 VA 240 V AC; 1.5 W 240 V DC
- Input or Control Voltage Range
- 0.85...1.1 Us
- Input Voltage
- 250 V
- Hz
- 50/60 Hz
- Number of Functions
- 10
- Standards
- cULus|| CSA
- Supply Frequency
- 50...60 Hz +/- 5 %
- Maximum Delay Response
- 100 ms
- Maximum Leakage Current
- 5 mA
- Functionality
- multifunction
- Maximum Switching Voltage
- 250 V AC
- Range of Product
- Harmony Timer Relays
- Immunity To Microbreaks
- 20 ms
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1
- Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2, electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2, susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5, conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6, voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11, voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022
- Minimum Switching Current
- 10 mA
- Electrical Durability
- 100000000 cycles
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- On-Load Factor
- 1
- Time Delay Type
- power on-delay, on-delay and off-delay, interval, off-delay, symmetrical flashing
- Ip Degree of Protection
- IP20 IEC 60529 terminal block), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
- Maximum Voltage Drop
- <4 V 3-wire, <8 V 2-wire
- Maximum Output Current
- 20 A
- Setting Accuracy of Time Delay
- +/- 10 % of full scale 25°C IEC 61812-1
- Derating Factor
- 5 mA/°C
- Reset Time
- 350 ms on de-energisation typical
- Vibration Resistance
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Component Name
- RE17L
- Breaking Capacity
- 0.5 A AC UL, 0.7 A AC 20°C
- Mounting Position
- any position in relation to normal vertical mounting plane
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- [Us] Rated Supply Voltage
- 24...240 V AC 50/60 Hz
- Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Impulse Duration
- 0.05 s typical
- Ambient Air Temperature For Storage
- -30-60°C
- Marking
- CE
- Operating Rate In Hz
- 10 Hz
- Temperature Drift
- +/- 0.05 %/°C
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Nominal Output Current
- 0.7 A
- Relative Humidity
- 93-93 % without condensation IEC 60068-2-30
- Ambient Air Temperature For Operation
- -20-60°C
- Maximum Power Consumption In W
- 1.5 W 240 V DC
- Voltage Drift
- +/- 0.2 %/V
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2/50µs
- Compatibility Code
- RE17
- Housing Material
- self-extinguishing
- Current Rating
- 0.7 A
- Coil Voltage
- 24 to 240V AC
