  7. Mushroom Head Push Button, 30 mm, SPDT, Red

This item is Discontinued.

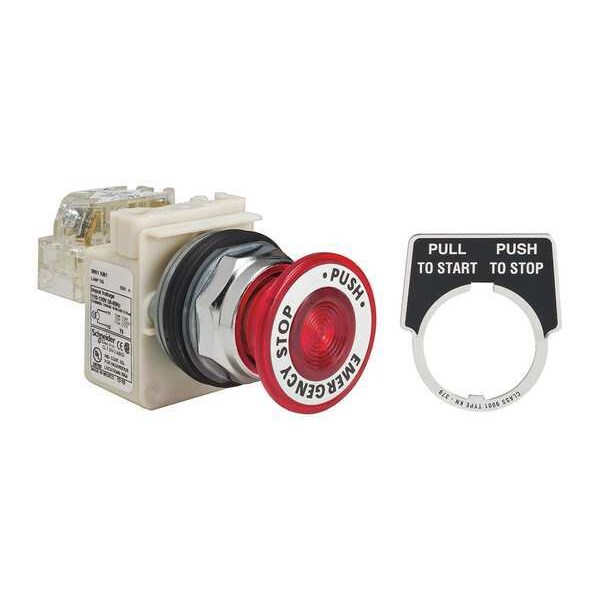

Schneider Electric Mushroom Head Push Button, 30 mm, SPDT, Red 9001KR9P1R05H13

Mushroom Head Push Button, 30 mm, SPDT, Red (Discontinued)

  • Mfr # 9001KR9P1R05H13
  • Zoro # G7606383
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR9P1R05H13
Zoro #
G7606383
UPC #
785901034179
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Mushroom Head Diameter
41 mm
Manufacturer Warranty Length
18 mo

Details

Action
Maintained
Head Material
Plastic
NEMA Rating
13, 3, 3R, 6
Type of Operator
25mm Mushroom Head
Lamp Type
Incandescent
Color
Red
Contact Form
SPDT
Bezel
Metal
Legend
Emergency Stop
Number of Operators
1
Item
Mushroom Head Push Button
Contact Rating
10A @ 600V AC/DC
Bezel Material
Metal
Terminal Connection
Screw Clamp
Legend Markings
Button: Emergency Stop, Legend: Pull To Start Push To Stop
Lamp Module Voltage
120V AC
Voltage
110 to 120V
Basic Material
Metal
IP Rating
IP20, IP65
Lamp Module Type
Transformer
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Contact Type
1NO/1NC
Series
9001K
AC Contact Rating
10 A @ 600 V
DC Contact Rating
10 A @ 600 V
Product Type
Push Button Operators
Operator Additional Information
screw-on plastic
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Device Presentation
complete product
Light Source
incandescent bulb
Device Short Name
K
Product Certifications
CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || NEMA || CE
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Contact Operation
standard
Operator Profile
mushroom Ø 41 mm
Operator Position Information
2 positions
Cap/Operator Or Lens Colour
red
Product Or Component Type
illuminated push-button
Bulb Base
BA 9s
Contacts Type And Composition
1 C/O
Light Block Supply
via integral transformer, without supply
Supply Frequency
50 to 60 Hz
[Us] Rated Supply Voltage
110 to 120 V
Maintained Action Release
Push/Pull
Operator Material
Plastic
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Hazardous Location Specification
Class I, Div 2, Group A, Class I, Div 2, Group B, C, D, Class II, Div 2, Group E, F, Class II, Div 2, Group G, Class III, Div 1 and 2
Operating Temperature - Minimum
-22 Degrees F
Operating Temperature - Maximum
140 Degrees F
Lamp Voltage - Maximum
120 V AC
Head Color
Red
Operator Voltage Rating - Maximum
120 V
Operator Illumination
Illuminated
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Push Button Style
Mushroom Head

Description

Mushroom Head Push Button, 30 mm, Maintained Action, 25mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Metal, Color Red, Contact Rating 10A @ 600V AC/DC, Number of Operators 1, NEMA Rating 13, 3, 3R, 6, IP Rating IP20, IP65, Legend Emergency Stop, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp
