  15. Mushroom push button head 40mm, Harmony XB4, metal, yellow, 22mm, latching push pull

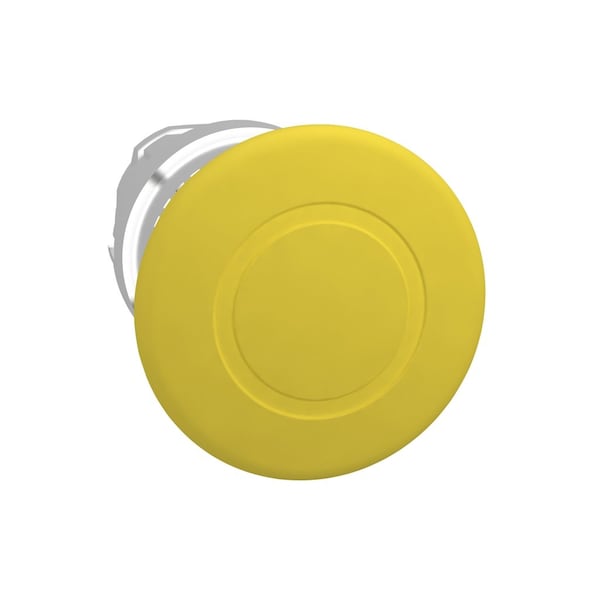

Schneider Electric Mushroom push button head 40mm, Harmony XB4, metal, yellow, 22mm, latching push pull ZB4BT5 - main

Mushroom push button head 40mm, Harmony XB4, metal, yellow, 22mm, latching push pull

  • Mfr # ZB4BT5

  • Zoro # G904395575

product price: $39.99
/ea

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BT5
Zoro #
G904395575
UPC #
-
Country of Origin
United States

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Mounting Diameter
22 mm

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Head Color
Yellow
Standards
EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
Bezel Material
chromium plated metal
Shape Of Signaling Unit Head
round
Product Or Component Type
head for non-illuminated push-button
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Presentation
basic element
Operator Profile
yellow mushroom Ø 40 mm, unmarked
Overvoltage Category
class I IEC 60536
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Head Type
standard
Protective Treatment
TH
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Mechanical Durability
300000 cycles
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ambient Air Temperature For Operation
-40-70°C
Type Of Operator
latching
Ik Degree Of Protection
IK06 IEC 50102
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
LROS (Lloyds register of shipping) || CSA || UL Listed || DNV || GL || BV
Reset
push-pull
Electrical Composition Code
C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
Device Short Name
ZB4
Cap/Operator or Lens Colour
yellow
Range of Product
Harmony XB4

Description

Yellow 040 mushroom pushbutton head 022
