This item is Discontinued.

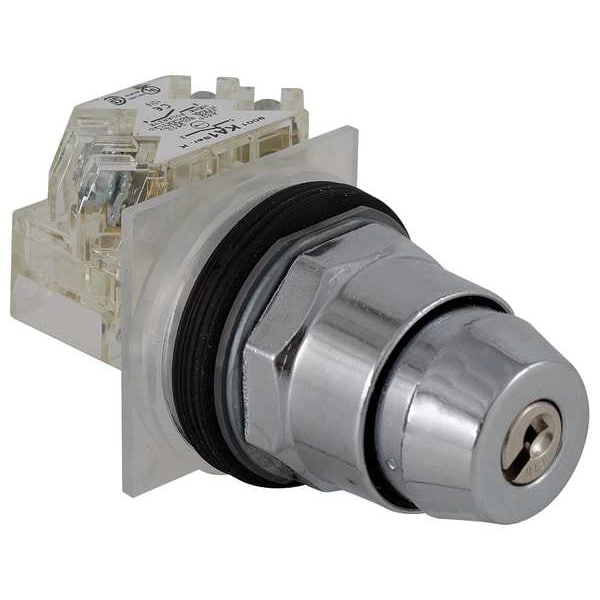

Schneider Electric Non-Illum Selector Switch, 4P, Maintained 9001KS88K14H2

Non-Illum Selector Switch, 4P, Maintained (Discontinued)

  • Mfr # 9001KS88K14H2
  • Zoro # G0951413
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KS88K14H2
Zoro #
G0951413
UPC #
785901347262
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
1.18 in (30 mm)
Panel Cutout Diameter
30 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Keyed
Action
Maintained/Maintained/Maintained/Maintained
Contact Form
1NO/1NC
Operator Head Material
Brass
Cam
H
Color
Chrome
NEMA Rating
12, 13, 3, 3R, 4
Bezel Material
Zinc
Position
4
Bezel Color
Black
Key Removal
Any Position
Standards
CE, CSA LR24590 Class 3211 03, UL E78403 CCN NKCR
Contact Rating
10A @ 600V AC
Includes
Key
Switch Operation @ Position B
XOOO
Switch Operation @ Position A
OOOX
IP Rating
IP65
Switch Operation @ Position C
OOXO
NEMA Contact Rating Designation
A600/Q600
Switch Operation @ Position D
OXOO
Key Number
E10
Series
9001K
Operator Position Information
4 positions
Product Certifications
UL listed file E42259 CCN NKCR; CSA LR24590 class 3211 03; CE
Cam Profile
8
Key Withdrawal Position
In any position
Connections - Terminals
Screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
NEMA Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Contact Type and Composition
2 C/O
Product Or Component Type
Selector switch
Operator Profile
Black key operated knob
Device Presentation
Complete product
NEMA Enclosure Rating
12, 13, 3, 3R, 4
Key Removal Position
Any Position
Operator Illumination
Non-Illuminated
Number of Positions
4
Switch Function @ 1st Position
On
Operator Head Type
Keyed
Switch Function @ 3rd Position
On
Switch Function @ 2nd Position
On
Switch Function @ 4th Position
On

Description

Selector Switch, 30 mm, 4 Position, Maintained/Maintained/Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Keyed, Color Chrome, Any Position Key Removal, Operator Head Material Brass, Basic Material Metal, Bezel Material Zinc, Bezel Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP65, Cam H, Switch Operation @ Position A OOOX, Switch Operation @ Position B XOOO, Switch Operation @ Position C OOXO
