  13. Non-Illum Selector Swtch, 22mm, 2 Pos, Levr

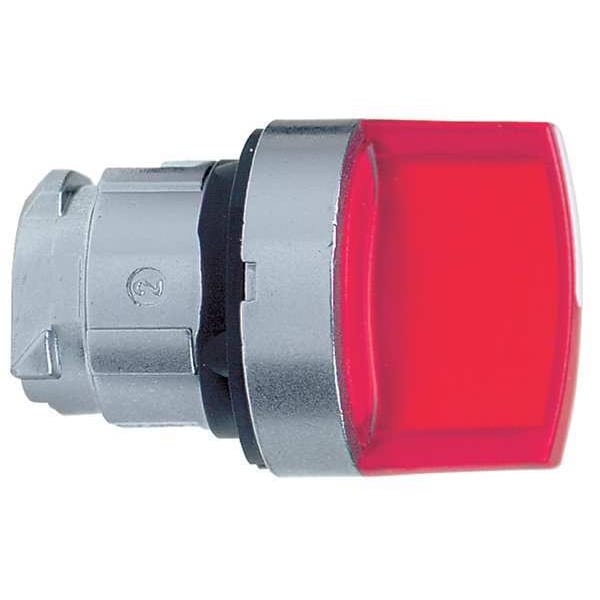

Schneider Electric Non-Illum Selector Swtch, 22mm, 2 Pos, Levr ZB4BD204 - main

Non-Illum Selector Swtch, 22mm, 2 Pos, Levr

  • Mfr # ZB4BD204

  • Zoro # G2363700

product price: $21.99
/ea

Key Features

Action
Maintained/Maintained
Size
22 mm
Basic Material
Metal
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Type of Operator
Lever
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BD204
Zoro #
G2363700
UPC #
785901563884
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Depth
44 mm
Mounting Diameter
22 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm
Overall Depth
1.73 in
Overall Height
1.14 in
Overall Width
1.14 in

Details

Action
Maintained/Maintained
Basic Material
Metal
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Type of Operator
Lever
Cam
No Cam Included
Operator Head Material
Plastic
Color
Red
Operator Color
Red
Item
Short-Handled Selector Switch
Position
2
Bezel Color
Chrome
Bezel Material
Chrome Plated Metal
Key Removal
No Key
Switch Operation @ Position A
OX
Switch Operation @ Position B
XO
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
Switch Operation @ Position D
No Fourth Position
Key Number
No Key
Switch Operation @ Position C
No Third Position
IP Rating
IP67, IP69, IP69K
Series
XB4
Device Short Name
ZB4
Protective Treatment
TH
Product Certifications
UL Listed || LROS (Lloyds register of shipping) || GL || CSA || BV || DNV
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type
head for selector switch
Operator Profile
red standard handle
Ip Degree Of Protection
IP67 IEC 60529 || IP69 || IP69K
Ambient Air Temperature For Operation
-40-70°C
Ambient Air Temperature For Storage
-40-70°C
Device Presentation
basic element
Operator Position Information
2 positions 90°
Mechanical Durability
1000000 cycles
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head
round
Head Type
standard
Ik Degree Of Protection
IK06 IEC 50102
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Overvoltage Category
class I IEC 60536
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 3rd Position
No Third Position
Operator Head Color
Red
Hazardous Location Specification
Not Rated
Operator Illumination
Non-Illuminated
Number of Positions
2
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operator Head Type
Short-Handled Knob

Description

Short-Handled Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Lever Type of Operator, Operator Color Red, Key Removal No Key, Operator Head Material Plastic, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No Key
