  11. Non-Illum Selector Swtch, 30mm, 3 Pos, Keyd
Shop All Selector Switches
Schneider Electric

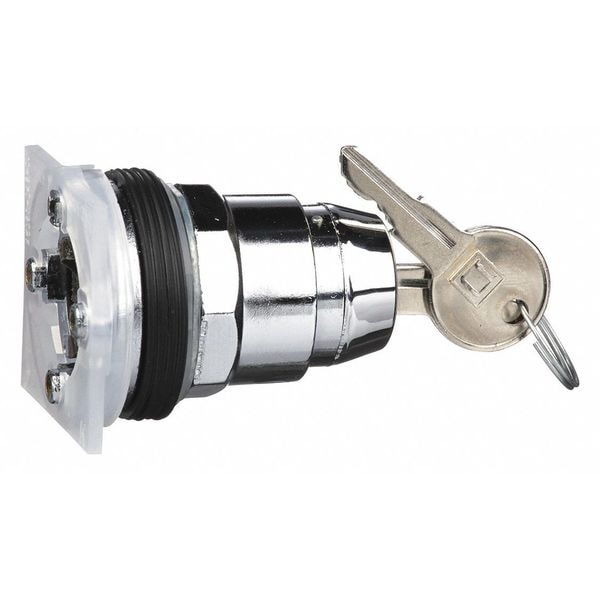

Non-Illum Selector Swtch, 30mm, 3 Pos, Keyd

original price: $163.53
8% off
new price: $148.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 30 mm
  • Basic Material Metal
  • Type of Operator Keyed
  • Action Momentary / Maintained / Momentary
  • Cam C
See all product information

Product Information

Dimensions

Size 30 mm
Mounting Diameter 30 mm

Details

Item Non-Illuminated Selector Switch Operator
Basic Material Metal
Type of Operator Keyed
Action Momentary / Maintained / Momentary
Cam C
Operator Head Material Metal
Operator Color Chrome
Color Chrome
NEMA Rating 12, 13, 3, 3R, 4
Bezel Material Metal
Position 3
Bezel Color Chrome
Key Removal Center
Key Number E10
Switch Operation @ Position B OOOO
IP Rating 65
Switch Operation @ Position A XOXO
Switch Operation @ Position D No Fourth Position
Standards CE Marked, CSA Certified File Number LR24590 Class 3211-03, UL Listed File Number E78403 CCN NKCR
Switch Operation @ Position C OXOX
Includes key
Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation -25-70°C
Device Short Name 9001K
Device Presentation basic element
Ambient Air Temperature For Storage -40-70°C
Product Certifications UL 508 || NEMA
Operator Profile key switch
Overvoltage Category class II IEC 61140
Protective Treatment TC
Product Compatibility 9001KA1 side 1 or 2
Shock Resistance 50 gn IEC 60068-2-27
Product Or Component Type head for key selector switch
Key Withdrawal Position center
Return both sides to centre
Shape Of Signaling Unit Head octagonal
Contacts Type And Composition without contact block
Ip Degree Of Protection IP66 IEC 60529
Type Of Keylock E10
Operator Position Information 3 positions
Mechanical Durability 500000 cycles
Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Cam Profile 3

Description

Non-Illuminated Selector Switch Operator, 30 mm, 3 Position, Momentary / Maintained / Momentary Action, Keyed Type of Operator, Operator Color Chrome, Key Removal Center, Operator Head Material Metal, Bezel Material Metal, Bezel Color Chrome, NEMA Rating 12, 13, 3, 3R, 4, IP Rating 65, Cam C, Standards CE Marked, CSA Certified File Number LR24590 Class 3211-03, UL Listed File Number E78403 CCN NKCR, Key Number E10, Includes key
