Schneider Electric

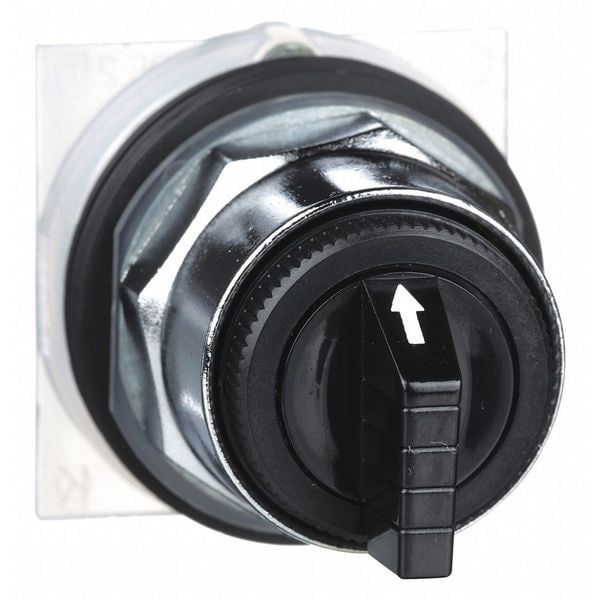

Non-Illum Selector Swtch, 30mm, 3 Pos, Levr

product price: $42.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 30 mm
  • Basic Material Metal
  • Type of Operator Lever
  • Action Maintained/Maintained/Maintained
  • Cam C
See all product information

Product Information

Dimensions

Size 30 mm
Mounting Diameter 30 mm
Manufacturer Warranty Length 18 mo
Panel Cutout Diameter 30 mm

Details

Item Short-Handled Selector Switch
Basic Material Metal
Type of Operator Lever
Action Maintained/Maintained/Maintained
Cam C
Operator Head Material Plastic
Operator Color Black
Color Black
NEMA Rating 12, 13, 3, 3R, 4
Bezel Material Metal
Position 3
Key Removal No Key
Bezel Color Chrome
Switch Operation @ Position C OXOX
Switch Operation @ Position A XOXO
Standards CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Key Number No Key
Switch Operation @ Position D No Fourth Position
Switch Operation @ Position B OOOO
IP Rating IP66
Series 9001K
Cam Profile 3
Cap/Operator Or Lens Colour black
Operator Profile black standard knob, standard handle
Nema Degree Of Protection NEMA 1/2/3/3R/4/6/12/13
Device Presentation basic element
Operator Position Information 3 positions
Contacts Type And Composition without contact block
Product Certifications CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
Device Short Name K
Product Or Component Type head for selector switch
Operator Illumination Non-Illuminated
Number of Positions 3
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4
Switch Function @ 4th Position No Fourth Position
Hazardous Location Specification Not Rated
Operator Head Type Short-Handled Knob
Operator Head Color Black

Description

Non-Illuminated Selector Switch Operator, 30 mm, 3 Position, Maintained / Maintained / Maintained Action, Lever Type of Operator, Operator Color Black, Key Removal No Key, Operator Head Material Plastic, Bezel Material Metal, Bezel Color Chrome, NEMA Rating 12, 13, 3, 3R, 4, IP Rating 65, Cam C, Standards CE Marked, CSA Certified File Number LR24590 Class 3211-03, UL Listed File Number E78403 CCN NKCR, Key Number No Key
