  13. Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

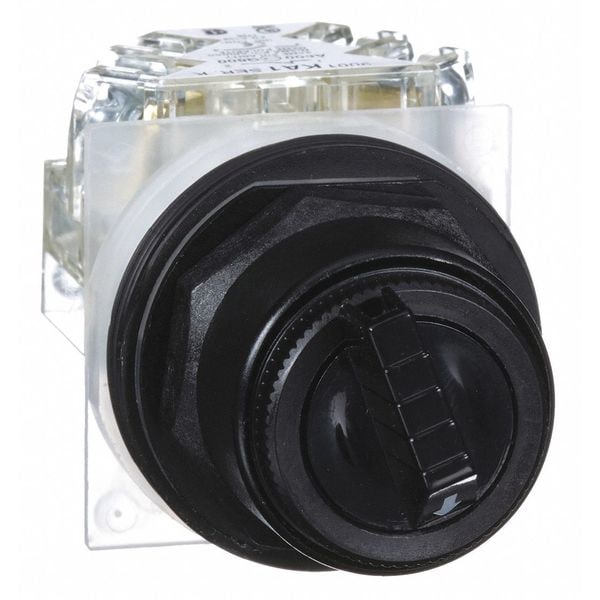

Schneider Electric Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever 9001SKS43BH13 - main

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

  • Mfr # 9001SKS43BH13

  • Zoro # G6629664

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Lever
Contact Form
1NC, 1NO
Action
Maintained/Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS43BH13
Zoro #
G6629664
UPC #
785901043720
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Contact Form
1NC, 1NO
Action
Maintained/Maintained/Maintained
Operator Head Material
Polycarbonate
Cam
C
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Plastic
Position
3
Key Removal
No Key
Bezel Color
Chrome
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position A
OX
Switch Operation @ Position D
No Fourth Position
IP Rating
IP66
Switch Operation @ Position B
OO
Contact Rating
10A @ 600V AC
Switch Operation @ Position C
XO
NEMA Contact Rating Designation
A600/Q600
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series
Harmony 9001K
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
9001SK
Operator Profile
black standard knob
Protective Treatment
TC
Device Presentation
complete product
Product Or Component Type
selector switch
Contacts Type And Composition
1 C/O
Electrical Shock Protection Class
class II IEC 61140
Operator Position Information
3 positions
Ip Degree Of Protection
IP66 IEC 60529
Ambient Air Temperature For Operation
-25-70°C
Product Certifications
UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
Product Compatibility
9001KA1 side 1 or 2
Operator Head Type
Short-Handled Knob
Switch Function @ 2nd Position
Off
Switch Function @ 4th Position
No Fourth Position
Contact Block Material
Plastic
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Switch Function @ 3rd Position
On
Switch Function @ 1st Position
On
Hazardous Location Specification
Not Rated
Operator Head Color
Black
Number of Positions
3
Operator Illumination
Non-Illuminated

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 1NC, 1NO Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Plastic, Bezel Material Plastic, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam C, Switch Operation @ Position A OX, Switch Operation @ Position B OO, Switch Operation @ Position C XO
