  13. Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

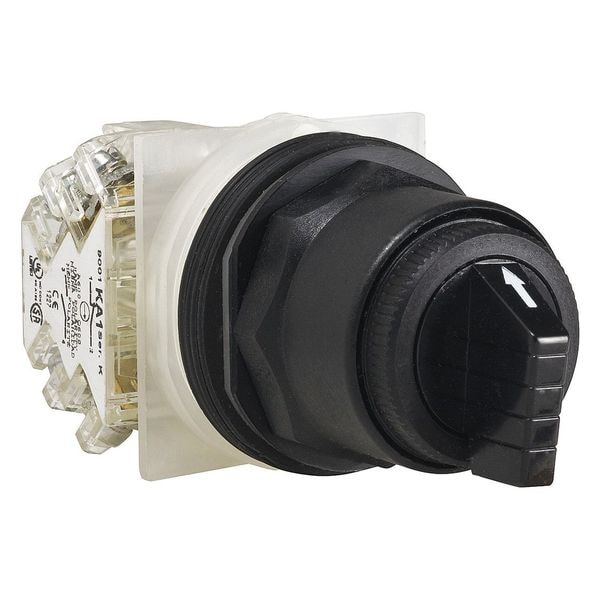

Schneider Electric Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever 9001SKS49BH2 - main

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

  • Mfr # 9001SKS49BH2

  • Zoro # G7029836

product price: $153.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Contact Form
2NO/2NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS49BH2
Zoro #
G7029836
UPC #
785901043942
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Contact Form
2NO/2NC
Cam
J
Operator Head Material
Polycarbonate
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Position
3
Bezel Material
Plastic
Key Removal
No Key
Bezel Color
Chrome
Switch Operation @ Position C
OXXO
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
IP Rating
IP66
Contact Rating
10A @ 600V AC
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position A
OXOX
Switch Operation @ Position B
XOXO
NEMA Contact Rating Designation
A600/Q600
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series
9001K
Product Or Component Type
selector switch
Product Certifications
CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
Operator Position Information
3 positions
Ambient Air Temperature For Operation
-25-70°C
Electrical Shock Protection Class
class II IEC 61140
Device Short Name
9001SK
Device Presentation
complete product
Ambient Air Temperature For Storage
-40-70°C
Contacts Type And Composition
2 C/O
Protective Treatment
TC
Ip Degree Of Protection
IP66 IEC 60529
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Hazardous Location Specification
Not Rated
Number of Positions
3
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 1st Position
On
Switch Function @ 2nd Position
Off
Operator Head Color
Black
Switch Function @ 3rd Position
On
Operator Illumination
Non-Illuminated
Operator Head Type
Short-Handled Knob
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Contact Block Material
Plastic

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 2NO/2NC Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Plastic, Bezel Material Plastic, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam J, Switch Operation @ Position A OXOX, Switch Operation @ Position B XOXO, Switch Operation @ Position C OXXO
