This item is Discontinued.

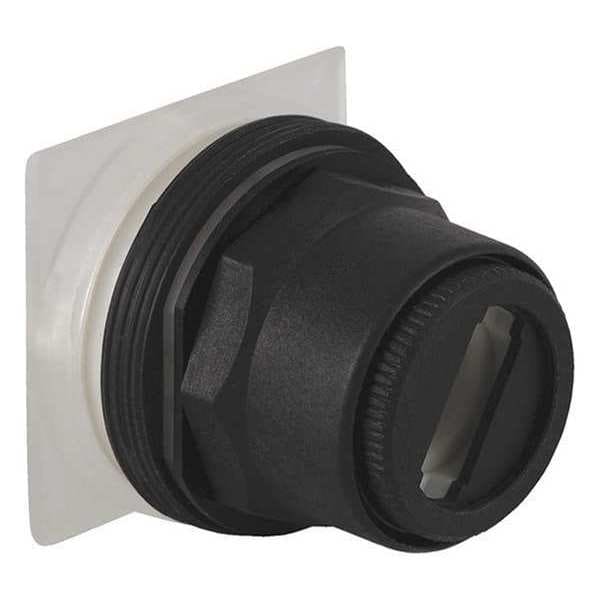

Schneider Electric Non-Illum Selectr Swtch, 30mm, 4 Pos 9001SKS88

Non-Illum Selectr Swtch, 30mm, 4 Pos (Discontinued)

  • Mfr # 9001SKS88
  • Zoro # G0548667
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001SKS88
Zoro #
G0548667
UPC #
785901458227
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Selector Switch Head
Basic Material
Plastic
Type of Operator
Operator Not Included
Action
Maintained/Maintained/Maintained/Maintained
Cam
H
Operator Color
No Operator
Color
No Operator
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Plastic
Position
4
Bezel Color
Black
Key Removal
No Key
IP Rating
IP66
Switch Operation @ Position C
OXOO
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position B
OOOOX
Switch Operation @ Position A
XOOO
Key Number
No Key
Switch Operation @ Position D
OOXO
Series
9001SK
Ambient Air Temperature For Operation
-25-70°C
Product Certifications
CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Electrical Shock Protection Class
class II IEC 61140
Device Short Name
9001SK
Protective Treatment
TC
Product Or Component Type
head for selector switch
Contacts Type And Composition
without contact block
Device Presentation
basic element
Operator Position Information
4 positions
Operator Profile
Without handle
Cam Profile
8
Number of Positions
4
Operator Illumination
Non-Illuminated
Operator Head Type
No Head Included
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Selector Switch Head, 30 mm, 4 Position, Maintained/Maintained/Maintained/Maintained Action, Operator Not Included Type of Operator, Operator Color No Operator, Key Removal No Key, Operator Head Material Not Applicable, Bezel Material Plastic, Bezel Color Black, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam H, Standards CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR, Key Number No Key
