  13. Non-Illum Switch, 2NO/2NC, Ext Lvr, 3P, Blk

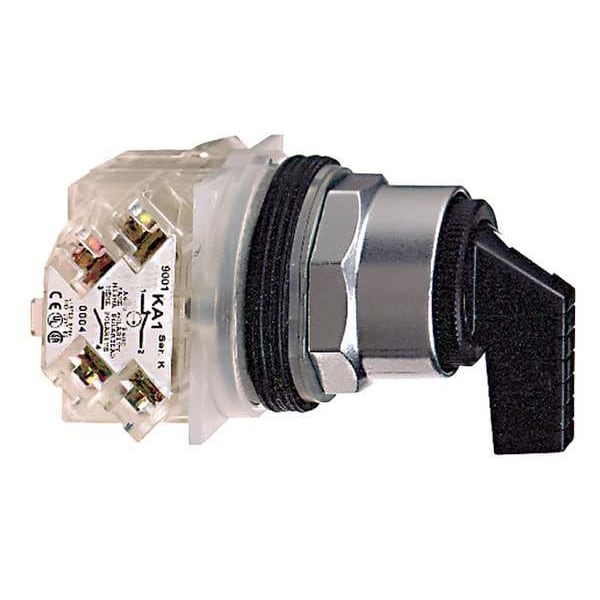

Schneider Electric Non-Illum Switch, 2NO/2NC, Ext Lvr, 3P, Blk 9001KS53FBH2 - main

Non-Illum Switch, 2NO/2NC, Ext Lvr, 3P, Blk

  • Mfr # 9001KS53FBH2

  • Zoro # G6632552

product price: $137.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Extended Lever
Contact Form
DPDT
Action
Momentary/Maintained/Momentary
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KS53FBH2
Zoro #
G6632552
UPC #
785901035282
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Extended Lever
Contact Form
DPDT
Action
Momentary/Maintained/Momentary
Operator Head Material
Polycarbonate
Cam
C
Color
Black
NEMA Rating
12, 13, 3, 3R, 4
Position
3
Bezel Material
Metal
Bezel Color
Chrome
Key Removal
No Key
NEMA Contact Rating Designation
A600/Q600
Switch Operation @ Position A
OXOX
Switch Operation @ Position B
OOOO
Switch Operation @ Position C
XOXO
IP Rating
IP65
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position D
No Fourth Position
Contact Rating
10A @ 600V AC
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series
9001K
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Connections - Terminals
screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Cap/Operator Or Lens Colour
black
Operator Profile
black gloved hand knob, long handle
Return
both sides to centre
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Product Or Component Type
selector switch
Cam Profile
3
Product Certifications
CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
Operator Position Information
3 positions
Device Presentation
complete product
Contacts Type And Composition
2 C/O
Device Short Name
K
Hazardous Location Specification
Not Rated
Operator Illumination
Non-Illuminated
Switch Function @ 2nd Position
Off
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 1st Position
Momentary
Operator Head Type
Long-Handled Knob
Switch Function @ 3rd Position
Momentary
Contact Block Material
Metal
Number of Positions
3
Operator Head Color
Black
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4

Description

Selector Switch, 30 mm, 3 Position, Momentary/Maintained/Momentary Action, DPDT Contact Form, Type of Operator Extended Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP65, Cam C, Switch Operation @ Position A OXOX, Switch Operation @ Position B OOOO, Switch Operation @ Position C XOXO
