  15. Non-Illuminated Multihead Operator, 22 mm, Rectangular

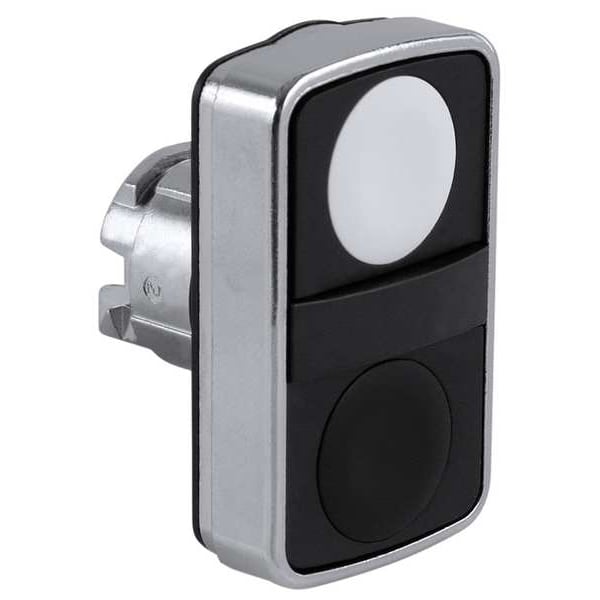

Schneider Electric Non-Illuminated Multihead Operator, 22 mm, Rectangular ZB4BA7120 - main

Non-Illuminated Multihead Operator, 22 mm, Rectangular

  • Mfr # ZB4BA7120

  • Zoro # G3557407

product price: $37.99
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
(1) Black; (1) White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BA7120
Zoro #
G3557407
UPC #
785901691174
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Overall Width
1.18 in
Overall Depth
1.18 in
Overall Height
1.97 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
(1) Black; (1) White
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
NEMA Rating
13, 4X
Legend/Background Color
White/Black
IP Rating
IP66
Number of Heads
2
Type of Operator
(2) Flush Buttons
Shape
Rectangular
Features
Emergency Stop
Bezel Material
Metal
Number of Operators
2
Series
XB4
Mechanical Durability
1000000 cycles
Operators Description
white unmarked - black unmarked
Head Type
standard
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
Product Certifications
LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || GL || BV
Operator Profile
black flush, unmarked || white flush, unmarked, 2 flush push-buttons
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-40-70°C
Device Presentation
basic element
Device Short Name
ZB4
Shape Of Signaling Unit Head
rectangular
Electrical Shock Protection Class
class I IEC 60536
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ip Degree Of Protection
IP67 IEC 60529 || IP69 IEC 60529
Ik Degree Of Protection
IK06 IEC 50102
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Ambient Air Temperature For Storage
-40-70°C
Product Or Component Type
head for double-headed push-button
Product Type
Multihead Operators
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Metal
Number of Indicator Lights
0

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (2) Flush Buttons, Head Material Metal, Bezel Material Metal, Color White/Black, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Legend/Background Color White/Black, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
