  7. Non-Illuminated Push Button, 30 mm, 1NO/1NC, Green

This item is Discontinued.

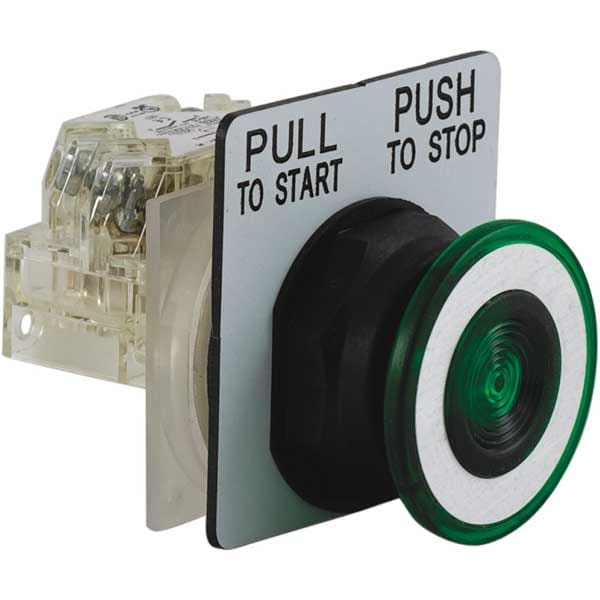

Schneider Electric Non-Illuminated Push Button, 30 mm, 1NO/1NC, Green 9001SKR9GH13

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Green (Discontinued)

  • Mfr # 9001SKR9GH13
  • Zoro # G1737172
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001SKR9GH13
Zoro #
G1737172
UPC #
785901043027
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Mushroom Head Diameter
41 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Action
Maintained
Head Material
Plastic
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Type of Operator
40mm Mushroom Head
Contact Form
SPDT
Color
Green
Bezel
Corrosion Resistant Thermoplastic
Legend
Pull to Start/Push to Stop
Number of Operators
1
Contact Rating
10A @ 600V AC
Item
Mushroom Head Push Button
Bezel Material
Plastic
Features
Finger-Safe Terminals
Material
Plastic
NEMA Contact Rating Designation
A600/Q600
IP Rating
IP66
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Terminal Connection
Screw Clamp
Basic Material
Plastic
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series
9001SK
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type
Push Button Operators
Contacts Type And Composition
1 C/O
Operator Additional Information
screw-on plastic
Operator Profile
green mushroom Ø 41 mm, mushroom Ø 41 mm
Operator Position Information
2 positions
Ip Degree Of Protection
IP66
Mechanical Durability
5000000 cycles
Cap/Operator Or Lens Colour
green
Product Or Component Type
push-button
Device Presentation
complete product
Device Short Name
9001SK
Contact Operation
standard
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Head Color
Green
Operating Temperature - Maximum
140 Degrees F
Maintained Action Release
Push/Pull
Operator Illumination
Non-Illuminated
Legend Background Color
White
Operator Material
Plastic
Push Button Style
Mushroom Head
Hazardous Location Specification
Class I, Div 2, Group A, Class I, Div 2, Group B, C, D, Class II, Div 2, Group E, F, Class II, Div 2, Group G, Class III, Div 1 and 2
Operator Voltage Rating - Maximum
600 V AC
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Mechanical Operating Durability
5.00 x 10^6
Number of Indicator Lights
0
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Legend Color
Black
Operating Temperature - Minimum
-22 Degrees F

Description

Mushroom Head Push Button, 30 mm, Maintained Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Corrosion Resistant Thermoplastic, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Pull to Start/Push to Stop
