  7. Non-Illuminated Push Button, 30 mm, 1NO/1NC, Red

This item is Discontinued.

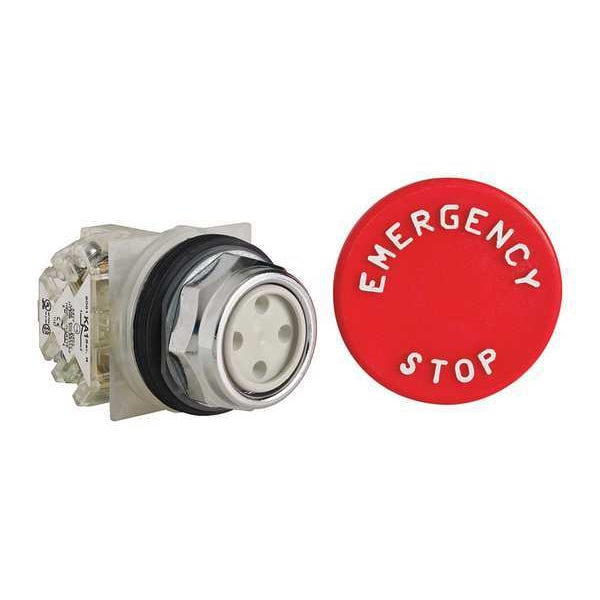

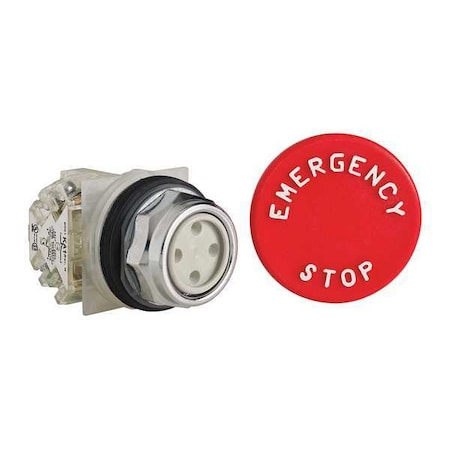

Schneider Electric Non-Illuminated Push Button, 30 mm, 1NO/1NC, Red 9001KR5R05H13

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Red (Discontinued)

  • Mfr # 9001KR5R05H13
  • Zoro # G7245926
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001KR5R05H13
Zoro #
G7245926
UPC #
785901033943
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Mushroom Head Diameter
57 mm
Manufacturer Warranty Length
18 mo

Details

Item
Mushroom Head Push Button
Contact Rating
10A @ 600V AC
Legend/Background Color
White/Red
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Action
Momentary
Type of Operator
57mm Mushroom Head
Head Material
Plastic
Contact Form
SPDT
Legend
Emergency Stop
Bezel
Chrome Plated Zinc Die Cast
Number of Operators
1
Color
Red
Bezel Material
Metal
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Basic Material
Metal
Material
metal
Terminal Connection
Screw Clamp
IP Rating
IP20, IP65
NEMA Contact Rating Designation
A600/Q600
Series
9001K
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Push Button Operators
Contacts Type And Composition
1 C/O
Product Or Component Type
push-button
Contact Operation
standard
Operator Additional Information
snap-in plastic
Light Source
without
Operator Profile
mushroom Ø 57 mm
Device Short Name
K
Cap/Operator Or Lens Colour
red
Device Presentation
complete product
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Product Certifications
CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE || NEMA
Light Block Supply
without supply
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Operator Voltage Rating - Maximum
600 V AC
Push Button Style
Mushroom Head
Operator Illumination
Non-Illuminated
Operating Temperature - Minimum
-22 Degrees F
Legend Color
White
Hazardous Location Specification
Class I, Div 2, Group A, Class I, Div 2, Group B, C, D, Class II, Div 2, Group E, F, Class II, Div 2, Group G, Class III, Div 1 and 2
Operating Temperature - Maximum
140 Degrees F
Operator Material
Plastic
Number of Indicator Lights
0
Head Color
Red
Legend Background Color
Red

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 57mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP20, IP65, Legend Emergency Stop, Legend/Background Color White/Red, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
