  11. Non-Illuminated Selectr Switch, 30mm, 2Pos
Shop All Selector Switches
Schneider Electric

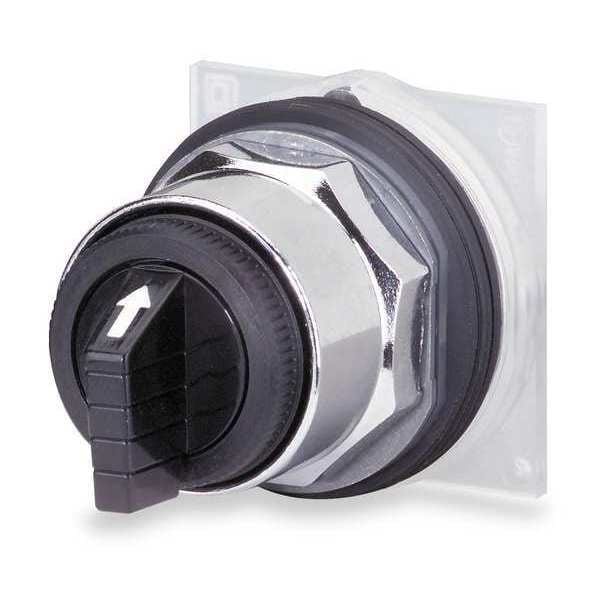

Non-Illuminated Selectr Switch, 30mm, 2Pos

original price: $99.53
21% off
new price: $78.45
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 30 mm
  • Basic Material Metal
  • Type of Operator Lever
  • Action Maintained/Maintained
  • Contact Form SPDT
See all product information

Product Information

Dimensions

Size 30 mm
Mounting Diameter 30 mm
Manufacturer Warranty Length 18 mo
Panel Cutout Diameter 30 mm

Details

Item Selector Switch
Basic Material Metal
Type of Operator Lever
Action Maintained/Maintained
Contact Form SPDT
Operator Head Material Polycarbonate
Cam E
Color Black
NEMA Rating 12, 13, 3, 3R, 4
Position 2
Bezel Material Chrome Plated Metal
Key Removal No Key
Bezel Color Black
Switch Operation @ Position A OX
Contact Rating 10A @ 600V AC
Switch Operation @ Position C No Third Position
Switch Operation @ Position D No Fourth Position
IP Rating IP65
Switch Operation @ Position B XO
Standards CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
NEMA Contact Rating Designation A600/Q600
Series 9001K
AC Contact Rating 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Nema Degree Of Protection NEMA 1/2/3/3R/4/6/12/13
Cam Profile 5
Cap/Operator Or Lens Colour black
Product Or Component Type selector switch
Contacts Type And Composition 1 C/O
Device Short Name K
Operator Position Information 2 positions
Operator Profile standard handle, black standard knob
Device Presentation complete product
Connections - Terminals screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Product Certifications UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
Number of Positions 2
Switch Function @ 4th Position No Fourth Position
Hazardous Location Specification Not Rated
Operator Head Type Short-Handled Knob
Contact Block Material Metal
Switch Function @ 3rd Position No Third Position
Switch Function @ 1st Position Off
Operator Illumination Non-Illuminated
Switch Function @ 2nd Position On
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4
Operator Head Color Black

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, SPDT Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP65, Cam E, Switch Operation @ Position A OX, Switch Operation @ Position B XO, Switch Operation @ Position C No Third Position
