This item is Discontinued.

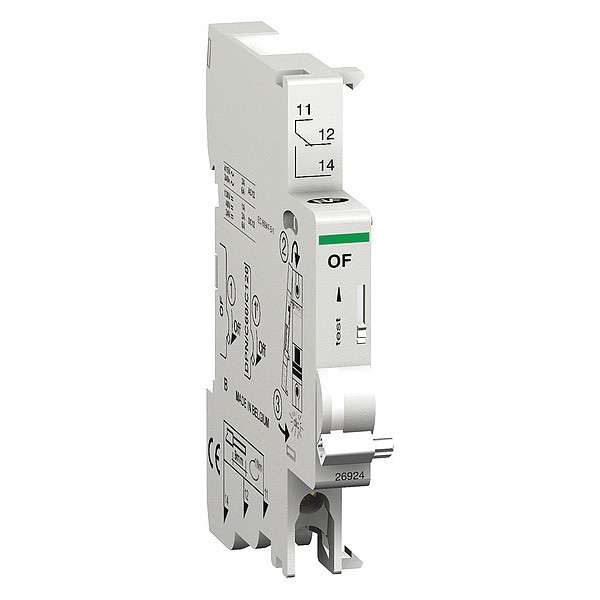

Schneider Electric OC Contact, 240 to 415V AC/24 to 130V DC, 6 A, 0 Poles M9A26924

OC Contact, 240 to 415V AC/24 to 130V DC, 6 A, 0 Poles (Discontinued)

Mfr # M9A26924
Zoro # G6553053

Get a 10% off coupon

Free 30-day returns Return Policy

Get 30 days to pay with Net 30 Apply Now

Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #

M9A26924

Zoro #

G6553053

UPC #

785901759263

Country of Origin

Belgium

Dimensions

Width

9 mm

Height

85 mm

Depth

73.5 mm

Wire Stripping Length

9 mm bottom

Details

Item

OC Contact

Voltage

240 to 415V AC/24 to 130V DC

Number of Poles

For Use With

Multi 9 Circuit Breakers

Standards

CCC, CSA Certified, EN 62019-2, EN/IEC 60947-5-1, PCT, UL Listed, UR

Amps

6 A

Comb Busbar And Distribution Block Compatibility

top YES

Signal Contacts Composition

1 C/O

Device Short Name

Mounting Support

DIN rail

[Uc] Control Circuit Voltage

240...415 V AC 50/60 Hz || 24...130 V DC

[Uimp] Rated Impulse Withstand Voltage

4 kV

Line Rated Current

3-3 A at 415 V, AC 50/60 Hz || 6-6 A at <= 240 V, AC 50/60 Hz

Range

Multi9

Ambient Air Temperature For Operation

-25-50 2°C

Ambient Air Temperature For Storage

-40-85 2°C

9 Mm Pitches

Mounting Mode

fixed

Product Or Component Type

OC contact

[Ui] Rated Insulation Voltage

500 V

Product Certifications

CSA || UR || UL || CCC || PCT

Tightening Torque

1-1 N.m bottom

Connections - Terminals

clamp terminal bottom) 1 2.5-2.5 mm2² AWG 14) - rigid || clamp terminal bottom) 2 1.5-1.5 mm2² AWG 16) - rigid

Description

OC Contact, For Use With Multi 9 Circuit Breakers, 6 A Amps, Voltage 240 to 415V AC/24 to 130V DC, Number of Poles None, Standards CCC, CSA Certified, EN 62019-2, EN/IEC 60947-5-1, PCT, UL Listed, UR
