- Item

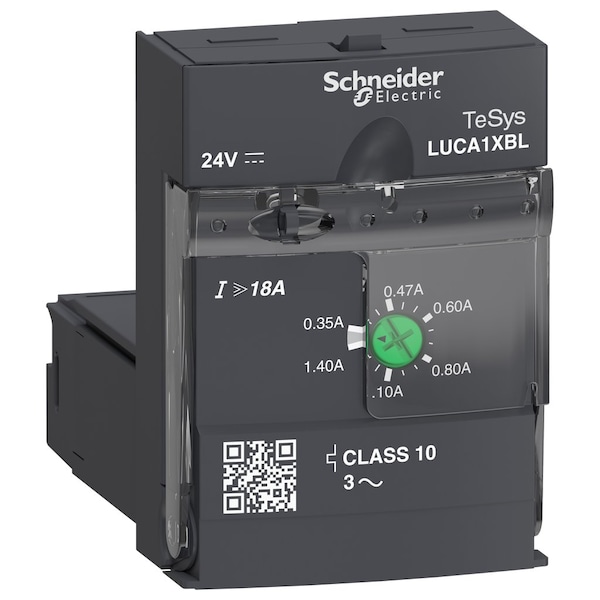

- Overload Module
- Minimum Overload Relay Current Setting
- 0.35 A
- Maximum Overload Relay Current Setting
- 1.4 A
- Trip Class
- 10
- Overload Protection Type
- Thermal
- Maximum Voltage Rating
- 690V AC
- Standards
- EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
- Features
- Protection against overload and short-circuit; Protection against phase failure and phase imbalance; Manual reset; Earth fault protection; Free of Halogen, Mercury & Pvc Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
- Coil Volts
- 24V DC
- Hz
- 40 to 60 Hz
- Weight
- 0.135 kg
- Compatible with Series
- TeSys Ultra
- Minumum Rated Motor Current Adjustment
- 0.35 A
- Maximum Rated Motor Current Adjustment
- 1.4 A
- Reset Type
- Manual
- Phase
- Three
- Motor Power KW
- 0.25 kW 400 to 440 V AC 50/60 Hz
- Operating Time
- 35 ms opening with LUB12 control circuit; 35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 70 ms closing with LUB12 control circuit; 70 ms closing with LUB32 control circuit; 70 ms closing with LUB38 control circuit
- Operating Altitude
- 6561.68 ft (2000 m)
- Compatibility Code
- LUCA
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Immunity To Microbreaks
- 3 ms
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2
- Product Or Component Type
- Standard control unit
- Vibration Resistance
- 2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6
- Typical Current Consumption
- 130 mA 24 V DC I maximum while closing with LUB12; 220 mA 24 V DC I maximum while closing with LUB32; 220 mA 24 V DC I maximum while closing with LUB38; 60 mA 24 V DC I rms sealed with LUB12; 80 mA 24 V DC I rms sealed with LUB32; 80 mA 24 V DC I rms sealed with LUB38
- Main Function Available
- Protection against overload and short-circuit; Protection against phase failure and phase imbalance; Manual reset; Earth fault protection
- Load Type
- 3-phase motor self-cooled
- Product Compatibility
- Power base LUB12; Power base LUB32; Power base LUB38; Power base LUB120; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B12BL; Reversing contactor breaker LU2B32BL; Reversing contactor breaker LU2B38BL
- Ambient Air Temperature For Operation
- -13 to 158°F (-25 to 70°C)
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Heat Dissipation
- 2 W control circuit with LUB12; 3 W control circuit with LUB32; 3 W control circuit with LUB38
- Thermal Overload Class
- Class 10 40 to 60 Hz -13 to 158°F (-25 to 70°C) IEC 60947-6-2; Class 10 40 to 60 Hz -13 to 158°F (-25 to 70°C) UL 508
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947-6-2
- Fire Resistance
- 1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12
- Tripping Threshold
- 14.2 x Ir +/- 20%
- Ambient Air Temperature For Storage
- -40 to 185°F (-40 to 85°C)
- Protective Treatment
- TH IEC 60068
- Utilisation Category
- AC-44; AC-43; AC-41
- Immunity To Voltage Dips
- 70% / 500 ms IEC 61000-4-11
- Product Specific Application
- Basic protection requirements for motor starters: overload and short-circuit
- Resistance To Radiated Fields
- 9.14 V/m (10 V/m) 3 IEC 61000-4-3
- Phase Failure Sensitivity
- Yes
- Rated Insulation Voltage
- 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
- Rated Operational Voltage
- 690 V AC
- Product Certifications
- CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine
- Fixing Mode
- Plug-in front face)
- Control Circuit Voltage Limits
- 20 to 27 V DC 24 V in operation; 14.5 V DC 24 V drop-out
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
- IP Rating
- IP20
- Relay Application
- Motor control; Motor protection
- Trip Clss
- 10
