Shop EATON

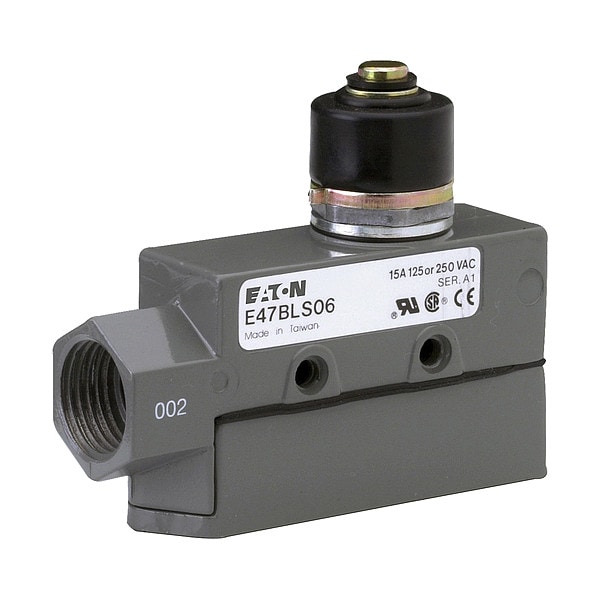

Snap Action Switch, Aluminum, Metal

  • Mfr # E47BLS06
  • Zoro # G213321784
product price:
$
99.99
/ea

Key Features

Pretravel
0.016 in
Overall Height
2.91 in
Manufacturer Warranty Length
1 yr
Overall Depth
3.39 in
Standards
CSA, UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BLS06
Zoro #
G213321784
UPC #
782113771113
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
2.91 in
Manufacturer Warranty Length
1 yr
Overall Depth
3.39 in
Overall Width
1 in
Roller Width
0.48 in
Actuator Length
1.8 in
Mounting Hole Diameter
4.32 mm

Details

Item
Snap Action Switch
Pretravel
0.016 in
Standards
CSA, UL Listed
Operating Force - Maximum
7.85 N
DC Contact Rating
6 A @ 30 V
Actuator Style
Plunger
Series
E47
Body Material
Aluminum
Electrical Connection
Screw Terminal
Operating Temperature - Minimum
-13 Degrees F
AC Contact Rating
15 A @ 250 V
Includes
Booted Plunger Actuator
Release Force
28.22 ozf
Operating Temperature - Maximum
176 Degrees F
Center Mounting Hole Distance
1 in
Contact Form
1NO/1NC
Operating Force - Minimum
2.36 N
Roller Material
Metal
Differential Travel - Maximum
0.004 in
Roller Position
Top
Overtravel
0.197 in
IP Rating
IP23
Action
Momentary
Mounting Hole Horizontal Center to Center Distance
1 in
Directional Movement
Linear
Differential Travel - Linear
0.004 in
NEMA Enclosure Rating
1
Number of Mounting Holes
2
Plunger Adjustability
Fixed
Pre-Travel - Linear
0.016 in
Includes Actuator
Actuator Included
Switch Structure
SPDT
Boot Sealed Actuator
Boot Included
Body Configuration
Non Plug-In
Over Travel - Linear
0.197 in
Mounting Style
Surface

Description

Snap Action Switch, Electrical Connection Screw Terminal, IP Rating IP23
