- Item
- Overload Relay
- Auxiliary Contact Form
- 1NC/1NO
- Minimum Overload Relay Current Setting
- 0.40 A
- Maximum Overload Relay Current Setting
- 2:00 AM
- Trip Class
- 5/10/20/30
- Overload Protection Type
- Thermal
- Maximum Voltage Rating
- 690V AC
- Standards
- CCC, CSA, CSA C22.2, GB 14048.4, IEC 60947-4-1, Product CULus, TÜV, UL 60947-4-1
- Use With - Contactors and Starters
- Mfr. Series LC1D09 to LC1D32 Contactors
- Separate Mounting
- Yes
- Trip Class - Overload
- 10, 20, 30, 5
- Frame / Series / Class / Code
- Series LRD
- Features
- China RoHS Regulation, Circularity Profile, Environmental Disclosure, EU RoHS Directive, Green Premium Product, Mercury Free, REACh free of SVHC, REACh Regulation, RoHS Exemption Information, Toxic Heavy Metal Free
- Number of Poles
- 3
- Sensing Method
- Thermal
- Thermal Overload Class
- class 5-30
- Device Short Name
- LR9D
- Ambient Air Temperature For Operation
- -25-70°C IEC 60255-8
- Electromagnetic Compatibility
- surge withstand 2 kV common mode IEC 61000-4-5 || resistance to electrostatic discharge 8 kV IEC 61000-4-2 || immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3 || immunity to fast transients 2 kV IEC 61000-4-4
- Phase Failure Sensitivity
- phase difference > 40% 3-3 s IEC 60947-4-1
- Product Or Component Type
- electronic thermal overload relay
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Ambient Air Temperature For Storage
- -55-80°C
- Dielectric Strength
- 6 kV 50 Hz IEC 60255-5
- Product Compatibility
- LC1D25 || LC1D09 || LC1D32 || LC1D38 || LC1D18 || LC1D12
- Tripping Threshold
- 1.25 In IEC 60947-4-1
- Product Certifications
- IECEE CB Scheme || UL || CSA || CCC
- Mechanical Robustness
- vibrations 10 to 150 Hz6 Gn IEC 60068-2-6 || shocks 11 ms15 gn IEC 60068-2-7
- Product Name

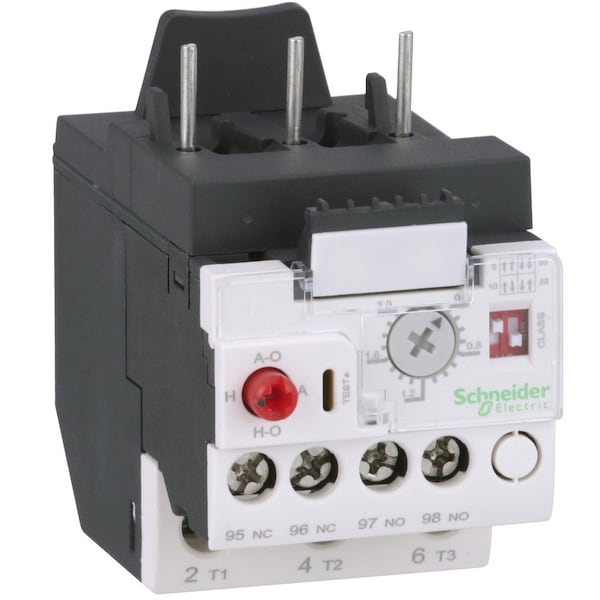

- TeSys LRD
- Time Range
- 1.5 to 4 min - automatic reset time
- Connections - Terminals
- control circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable end || power circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end
- Tightening Torque
- control circuit 0.8 N.m screw clamp terminals || power circuit 3.1 N.m screw clamp terminals
- Control Type
- Red push-button stop and manual reset || White 2 microswitches adjustable trip class || Red knob automatic reset || White dial full-load current adjustment
- Associated Fuse Rating
- 5 A gG signalling circuit || 5 A BS signalling circuit
- Range
- TeSys
- Thermal Protection Adjustment Range
- 0.4-2 A
- Relay Application
- motor protection
- Power Consumption In W
- 300 mW
- Conventional Free Air Thermal Current
- 5 A signalling circuit
- Rated Insulation Voltage
- power circuit 1000 V || signalling circuit 690 V
- IP Rating
- IP20
- Mounting Style
- under contactor || plate, with specific accessories || rail, with specific accessories
- Rated Operational Voltage
- 690 V power circuit || 660 V signalling circuit
- Trip Clss
- 5/10/20/30
