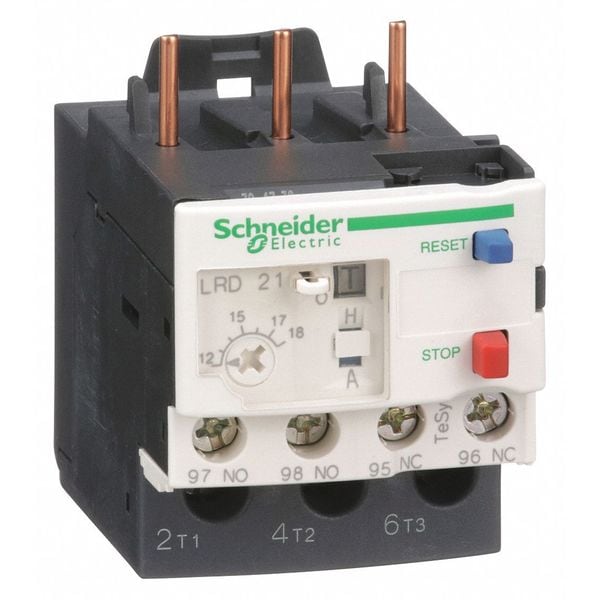

Overload Relay, 1NC/1NO, 12 A Min current, 18 A Max current, 690V AC

  • Mfr # LRD21

  • Zoro # G1887277

product price:
$
78.40
/ea

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
12:00 AM
Maximum Overload Relay Current Setting
18 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LRD21
Zoro #
G1887277
UPC #
785901206798
Country of Origin
Korea, Republic of

Dimensions

Body Height - Relay
3.62 in
Width
1.77
Height
3.62"
Overall Height - Relay
3.62 in
Depth
2.75
Body Depth
2.76 in
Body Width
1.77 in
Body Height
2.6 in
Overall Height
2.6 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
12:00 AM
Maximum Overload Relay Current Setting
18 A
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Use With - Contactors and Starters
Mfr. Series LC1D18 to LC1D32 Contactors
Number of Poles
3
For Use With
LC1D18 thru LC1D32 Contactor
Features
Single Phase Sensitivity; Differential
Sensing Method
Bimetallic
Trip Class - Overload
10
Starter Type
IEC
Product Certifications
IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Product Or Component Type
differential thermal overload relay
Flame Retardance
V1 conforming to UL 94
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Product Name
TeSys LRD || TeSys Deca
Device Short Name
LRD
Thermal Protection Adjustment Range
12-18 A
Climatic Withstand
IACS E10
Ambient Air Temperature For Storage
-60-70°C
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 2.5 N.m screw clamp terminals
Network Frequency
0 to 400 Hz
Control Type
Red push-button stop || Blue push-button reset
Range
TeSys || TeSys Deca
Network Type
AC || DC
Permissible Current
1.5 A 240 V AC-15 signalling circuit || 0.1 A 250 V DC-13 signalling circuit
Mechanical Robustness
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Product Compatibility
LC1D32 || LC1D18 || LC1D25 || LC1D38
Thermal Overload Class
class 10A IEC 60947-4-1
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid
Relay Application
motor protection
Terminal Connection Type
Screw Clamp Terminals
Maximum Operating Temperature
140 Degrees F
Compatible with Series
TeSys Deca
IP Rating
IP20
Mounting Style
Direct To Contactor
Reset Type
Manual
Relay Style
IEC
Minimum Operating Temperature
-4 Degrees F
Rated Insulation Voltage
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Trip Clss
10A

Description

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 12 to 18 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
