  11. Overload Relay, 1NC/1NO, 0.80 A Min current, 1.2 A Max current, 690V AC

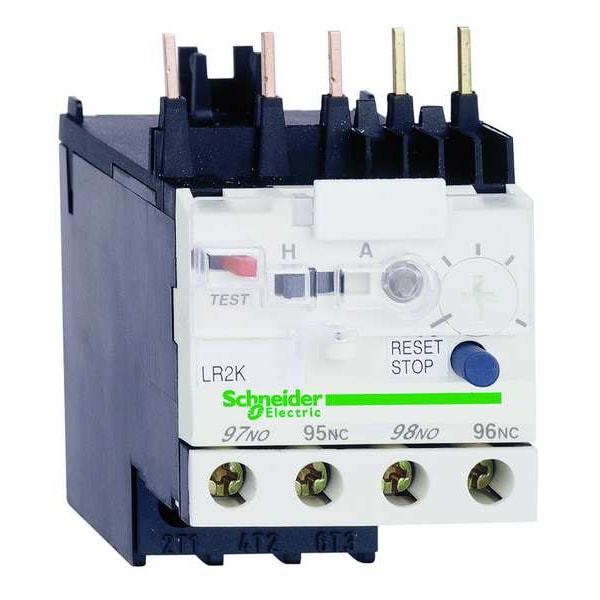

Schneider Electric Overload Relay, 1NC/1NO, 0.80 A Min current, 1.2 A Max current, 690V AC LR2K0306 - main

Overload Relay, 1NC/1NO, 0.80 A Min current, 1.2 A Max current, 690V AC

  • Mfr # LR2K0306

  • Zoro # G0473846

product price: $80.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
0.80 A
Maximum Overload Relay Current Setting
1.2 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR2K0306
Zoro #
G0473846
UPC #
785901883517
Country of Origin
Czechia

Dimensions

Body Height - Relay
2.28 in
Height
2.56"
Overall Height - Relay
2.28 in
Width
1.77
Depth
2.28
Overall Height
2.28 in
Body Height
2.28 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
0.80 A
Maximum Overload Relay Current Setting
1.2 A
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660
Number of Poles
3
Use With - Contactors and Starters
LC7K, LP1K, LP4K Contactors, Mfr. Series LC1K
For Use With
TeSys K AC or DC IEC Contactor
Trip Class - Overload
10
Sensing Method
Bimetallic
Features
Single Phase Sensitivity; Differential
Starter Type
IEC
Tightening Torque
1.3 N.m screw clamp terminals Philips No 2 || 1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
Power Dissipation Per Pole
2 W
Network Frequency
<= 400 Hz
Ambient Air Temperature For Operation
-20-55°C without derating IEC 60947 || -30-60°C with derating IEC 60947
Phase Failure Sensitivity
yes IEC 60947-4-1
Connections - Terminals
screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
Ambient Air Temperature For Storage
-40-70°C
Network Type
AC || DC
Mechanical Robustness
shocks NO contact10 Gn for 11 ms IEC 60068-2-27 || shocks NC contact10 Gn for 11 ms IEC 60068-2-27 || vibrations NO contact2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations NC contact2 Gn, 5 to 300 Hz IEC 60068-2-6
Product Name
TeSys LRK
Associated Fuse Rating
6 A gG signalling circuit VDE 0660 || 6 A gG signalling circuit IEC 60947
Product Certifications
UL || CSA || UKCA
Thermal Overload Class
class 10A IEC 60947-4-1
Product Compatibility
LC1K || LC7K || LP4K || LP1K
Thermal Protection Adjustment Range
0.8-1.2 A
Local Signalling
trip indicator Yellow)
Fire Resistance
850°C IEC 60695-2-1
Operating Altitude
6561.68 ft (2000 m) without derating
Protective Treatment
TC IEC 60068 || TC DIN 50016
Relay Application
motor protection
Flame Retardance
V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
Device Short Name
LR2K
Range
TeSys
Product Or Component Type
differential thermal overload relay
Control Type
Red push-button trip test function || Blue push-button stop and manual reset || selector switch manual or automatic reset
Maximum Operating Temperature
131 Degrees F
Minimum Operating Temperature
-4 Degrees F
Relay Style
IEC
Compatible with Series
TeSys Deca, TeSys K
Reset Type
Auto, Manual
Terminal Connection Type
Screw Clamp Terminals
IP Rating
IP22
Mounting Style
Direct To Contactor
Rated Operational Voltage
Less than or Equal to 690 V power circuit; 690 V AC AC-15 signalling circuit; 250 V DC DC-13 signalling circuit
Rated Insulation Voltage
Power circuit 690 V BS 4941; Power circuit 690 V IEC 60947; Power circuit 750 V VDE 0110 group C; Power circuit 600 V CSA C22.2 No 14
Conventional Free Air Thermal Current
6 A signalling circuit
Trip Clss
10A

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 1.2 A, Minimum Overload Relay Current Setting 0.8 A, Trip Class 10A, Maximum Voltage Rating 250V DC (Signaling Circuit), 690V AC (Signaling Circuit), NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, TeSys K, Relay Style IEC, Overload Protection Type Thermal
