  11. Overload Relay, 1NC/1NO, 1 A Min current, 1.6 A Max current, 690V AC

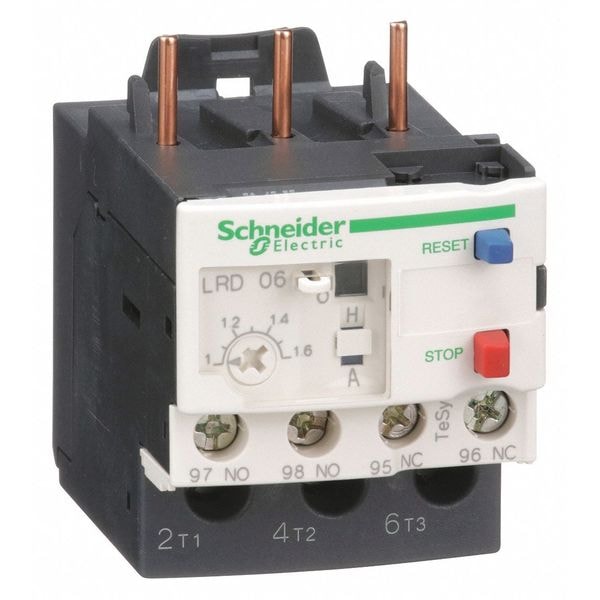

Schneider Electric Overload Relay, 1NC/1NO, 1 A Min current, 1.6 A Max current, 690V AC LRD06 - main

Overload Relay, 1NC/1NO, 1 A Min current, 1.6 A Max current, 690V AC

  • Mfr # LRD06

  • Zoro # G2807804

product price: $73.29
/ea

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
1:00 AM
Maximum Overload Relay Current Setting
1.6 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LRD06
Zoro #
G2807804
UPC #
785901206736
Country of Origin
France

Dimensions

Depth
2.75
Height
3.62"
Overall Height - Relay
3.62 in
Body Height - Relay
3.62 in
Width
1.77
Overall Height
2.6 in
Body Height
2.6 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
1:00 AM
Maximum Overload Relay Current Setting
1.6 A
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Trip Class - Overload
10
Use With - Contactors and Starters
Mfr. Series LC1D09 to LC1D32 Contactors
Number of Poles
3
For Use With
LC1D09 thru LC1D32 Contactor
Features
Single Phase Sensitivity; Differential
Sensing Method
Bimetallic
Starter Type
IEC
Climatic Withstand
IACS E10
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Thermal Protection Adjustment Range
1-1.6 A
Network Frequency
0 to 400 Hz
Permissible Current
3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Range
TeSys || TeSys Deca
Control Type
Red push-button stop || Blue push-button reset
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Type
differential thermal overload relay
Product Certifications
IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Product Compatibility
LC1D25 || LC1D32 || LC1D12 || LC1D18 || LC1D38 || LC1D09
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
Mechanical Robustness
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
Flame Retardance
V1 conforming to UL 94
Thermal Overload Class
class 10A IEC 60947-4-1
Network Type
DC || AC
Relay Application
motor protection
Product Name
TeSys LRD || TeSys Deca
Device Short Name
LRD
Ambient Air Temperature For Storage
-60-70°C
Compatible with Series
TeSys Deca
Minimum Operating Temperature
-4 Degrees F
Mounting Style
Direct To Contactor
Reset Type
Manual
IP Rating
IP20
Terminal Connection Type
Screw Clamp Terminals
Maximum Operating Temperature
140 Degrees F
Relay Style
IEC
Rated Insulation Voltage
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Trip Clss
10A

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 1.6 A, Minimum Overload Relay Current Setting 1 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
