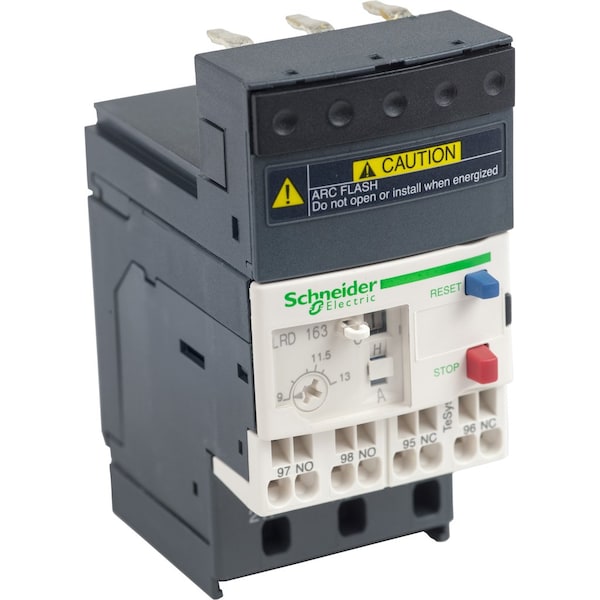

Thermal Overload Relay, 1NC/1NO, 9 A Min current, 13 A Max current

  • Mfr # LRD163

  • Zoro # G0569917

product price:
$
86.79
/ea

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
9:00 AM
Maximum Overload Relay Current Setting
13 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LRD163
Zoro #
G0569917
UPC #
785901822387
Country of Origin
France

Dimensions

Width
45 mm
Height
93 mm
Depth
72 mm

Details

Item
Thermal Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
9:00 AM
Maximum Overload Relay Current Setting
13 A
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690 V
Standards
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495
Mechanical Robustness
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Climatic Withstand
IACS E10
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Thermal Overload Class
class 10A IEC 60947-4-1
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Range
TeSys || TeSys Deca
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Flame Retardance
V1 conforming to UL 94
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Permissible Current
3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
Product Name
TeSys LRD || TeSys Deca
Connections - Terminals
control circuit spring terminals 1 1-2.5 mm² solid without cable end || control circuit spring terminals 1 1-2.5 mm² flexible without cable end || power circuit spring terminals 1 1.5-4 mm² flexible without cable end || power circuit spring terminals 1 1.5-4 mm² flexible with cable end
Device Short Name
LRD
Thermal Protection Adjustment Range
9-13 A
Product Compatibility
LC1D18 || LC1D12 || LC1D32 || LC1D25 || LC1D38
Relay Application
motor protection
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Product Certifications
IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Ambient Air Temperature For Storage
-60-70°C
Network Type
DC || AC
Product Or Component Type
differential thermal overload relay
Network Frequency
0 to 400 Hz
Control Type
Red push-button stop || Blue push-button reset
Rated Insulation Voltage
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Maximum Operating Temperature
140 Degrees F
IP Rating
IP20
Conventional Free Air Thermal Current
5 A signalling circuit
Minimum Operating Temperature
-4 Degrees F
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Mounting Style
plate, with specific accessories || rail, with specific accessories || under contactor
Trip Clss
10A

Description

Bimetallic Overload Relay 600V 13A Iec
