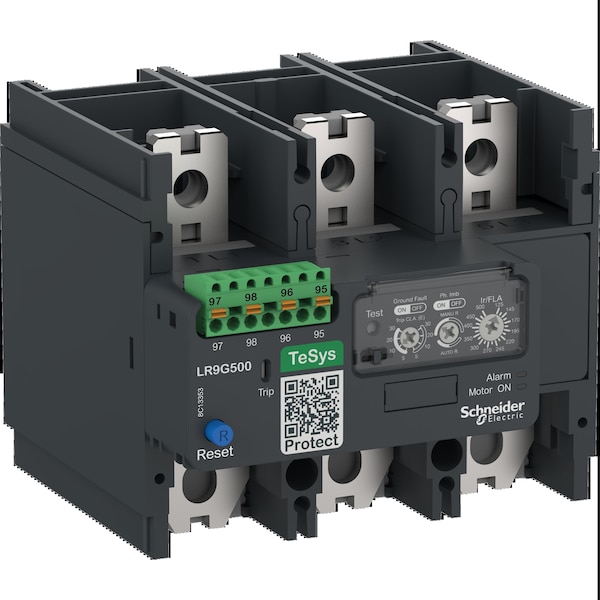

Overload Relay, 1NC/1NO, 125 A Min current, 500 A Max current, 500V AC
Mfr # LR9G500
Zoro # G810070405
product price: $1,576.99
/ea
Free Shipping & Returns
Key Features
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
125 A
Maximum Overload Relay Current Setting
500 A
Trip Class
5E/30E
Overload Protection Type
Electronic
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LR9G500
Zoro #
G810070405
UPC #
3606481912565
Country of Origin
China
Dimensions
Overall Height
4.49 in
Body Height
4.49 in
Depth
5.51 in
Width
5.51 in
Details
Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
125 A
Maximum Overload Relay Current Setting
500 A
Trip Class
5E/30E
Overload Protection Type
Electronic
Maximum Voltage Rating
500V AC
Standards
CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
Number of Poles
3
Compatible with Series
TeSys Giga
Phase
Single
Maximum Operating Temperature
140 Degrees F
Relay Style
IEC
IP Rating
IP20
Mounting Style
Direct To Contactor
Minimum Operating Temperature
-13 Degrees F
Reset Type
Auto, Manual
Terminal Connection Type
Box Lugs
Description
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 500 A, Minimum Overload Relay Current Setting 125 A, Trip Class 5E/30E, Maximum Voltage Rating 500V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Box Lugs, Compatible with Series TeSys Giga, Relay Style IEC, Overload Protection Type Electronic, Phase Single
