Shop SCHNEIDER ELECTRIC

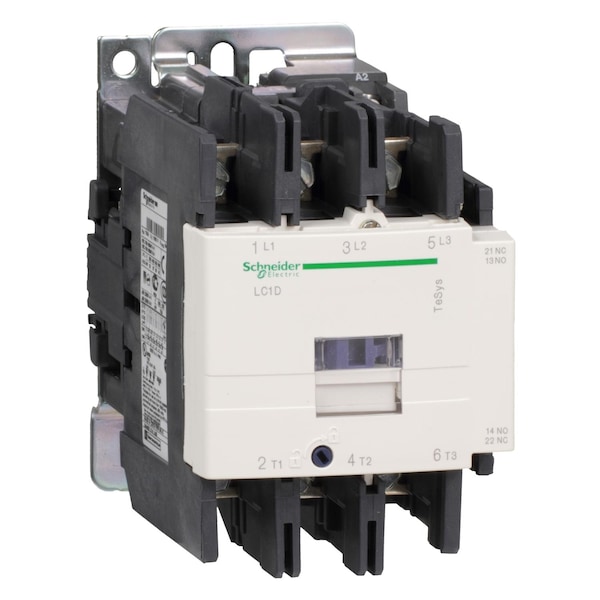

IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, nonreversing, Screw

  • Mfr # LC1D806LE7

  • Zoro # G0848517

product price:
$
460.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V AC
Number of Poles
3
Full Load Amps-Inductive
80 A
Full Load Amps-Resistive
125 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D806LE7
Zoro #
G0848517
UPC #
785901945024
Country of Origin
Czechia
Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V AC
Number of Poles
3
Full Load Amps-Inductive
80 A
Full Load Amps-Resistive
125 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Lug-Ring
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, GOST, DNV, UL, CCC, LROS, BV, CSA, GL, RINA, THIEC 60068-2-30
Series
LC1D, TeSys
HP @ 3 Phase - 575V
60 hp
Features
Without Built-In Suppressor Module
Application
Motor Control, Resistive Load
Watts Loss
6 to 10W
Operating Speed
3600 cycles per hr
Operating Time
20 to 35 ms (Closing), 6 to 20 ms (Opening)
Signalling Circuit Frequency
25 to 400 Hz
Switching Voltage
17 V (Signalling Circuit)
Inrush VA
245 VA
Max. Operating Watts
22 kW (at 220 to 230V AC 50/60 Hz AC-3), 37 kW (at 380 to 400V AC 50/60 Hz AC-3), 45 kW (at 415 to 440V AC 50/60 Hz AC-3), 55 kW (at 500V AC 50/60 Hz AC-3), 45 kW (at 660 to 690V AC 50/60 Hz AC-3), 15 kW (at 400V AC 50/60 Hz AC-4), 22 kW (at 220 to 230V AC 50/60 Hz AC-3e), 37 kW (at 380 to 400V AC 50/60 Hz AC-3e), 45 kW (at 415 to 440V AC 50/60 Hz AC-3e), 55 kW (at 500V AC 50/60 Hz AC-3e), 45 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
IP Rating
IP20
Electrical Durability
0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V)
Fire Rating
UL 94 V1
Switching Current
5 mA (Signalling Circuit)
Overvoltage Category
CAT III
Fuse Amps
10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)
Includes Protective Cover
Yes
Net Weight
1.59 kg
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Shock Resistance
10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)
Vibration Resistance
3 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage
8 kV
Mechanical Durability
4 Mcycles
Rated Breaking Capacity
1100 A @ 440V
Rated Short-Time Withstand Current
640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Impedance
0.8 mOhm
Control Circuit Voltage Limits
Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 55°C 50 Hz), 1 to 1.1 Uc (at 55 to 70°C 50/60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz)
Tightening Torque
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Rated Insulation Volts
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Non-Overlap Time
1.5 ms
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit)
Hold VA
26 VA
Fire Resistance
850°C IEC 60695-2-1
Climatic Withstand
IACS E10 exposure to damp heat
Protective Treatment
THIEC 60068-2-30
Mechanical Robustness
vibrations contactor open 2 Gn, 5...300 Hz) , shocks contactor open 8 Gn for 11 ms) , vibrations contactor closed 3 Gn, 5...300 Hz) , shocks contactor closed 10 Gn for 11 ms)
Utilisation Category
AC-3, AC-3e, AC-4, AC-1
Pole Contact Composition
3 NO
Heat Dissipation
6-10 W at 50/60 Hz
Operating Altitude
0...9842.52 ft (0...3000 m)
Protective Cover
with
[Icw] Rated Short-Time Withstand Current
640 A 40°C - 10 s for power circuit, 990 A 40°C - 1 s for power circuit, 135 A 40°C - 10 min for power circuit, 320 A 40°C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
Maximum Operating Rate
3600 cyc/h 60°C
[Ui] Rated Insulation Voltage
power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
Power Dissipation Per Pole
5.1 W AC-3, 12.5 W AC-1, 5.1 W AC-3e
Control Circuit Type
AC 50/60 Hz
Auxiliary Contacts Type
mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
Contactor Application
motor control, resistive load
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Full Load Current - Resistive
125 A
Horsepower @ Single Phase - 240V AC
15 hp
Horsepower @ Three Phase - 240V AC
30 hp
Horsepower @ Three Phase - 208V AC
30 hp
Full Load Current - Inductive
80 A
Horsepower @ Three Phase - 480V AC
60 hp
Mounting Style
Plate, Rail
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 125 A (at 60°C Power Circuit)
Ambient Air Temperature For Operation
-40-60°C, 60-70°C with derating
Maximum Operating Temperature
140 Degrees F
Inrush Power in VA
245-245 VA 60 Hz cos phi 0.75 (at 20°C), 245-245 VA 50 Hz cos phi 0.75 (at 20°C)
Rated Operational Voltage
power circuit <= 300 V DC 25...400 Hz, power circuit <= 690 V AC
Maximum Voltage Rating
690V AC, 300V DC
Control Circuit Voltage
208 V AC 50/60 Hz
Rated Operational Current
125 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Description

The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards. It incorporates a 48 V AC coil suitable for motor control and resistive load applications. This unit is a 3-pole, nonreversing contactor with a 1NC/1NO auxiliary contact, and it features screw-type connections. It is part of the TeSys LC1D series, which includes a protective cover.

Coil voltage: 48 V AC

  • Poles and main contacts: 3P, 3 NO
  • Auxiliary contacts: 1NC/1NO; mechanically linked 1 NO + 1 NC (IEC 60947-5-1)
  • Reversing capability: nonreversing
  • Terminal connections: Control circuit connections: Lugs or ring terminals; Power circuit connections: bars, lugs, or screw terminals
  • Electrical protection: IP20 front face
  • Includes a protective cover: Yes
  • Mounting: Rail, Plate
  • Weight and size: Net weight 1.59 kg; Depth 130 mm; Height 127 mm; Width 85 mm
  • Fuse ratings are specified as follows: Signalling circuit—10 A; Type 1 power circuit—200 A; Type 2 power circuit—160 A
  • Rated currents are specified as follows: AC-1 resistive loads up to 125 A; AC-3 inductive loads up to 80 A
  • The rated making capacity is provided at specific voltages but does not guarantee performance under all conditions
  • Rated short-time withstand current: 640 A (40°C, Power, 10 s); 990 A (40°C, Power, 1 s); 135 A (40°C, Power, 10 min); 320 A (40°C, Power, 1 min); 100 A (Signalling, 1 s); 120 A (Signalling, 500 ms); 140 A (Signalling, 100 ms)
  • Power dissipation per pole: 5.1 W (AC-3); 12.5 W (AC-1); 5.1 W (AC-3e)
  • Impedance: 0.8 mΩ
  • Impulse withstand voltage: 8 kV
  • Operating speed/time: Typical switching times are provided but do not imply guaranteed operational speeds under all circumstances
  • Overvoltage category: CAT III
  • Range/Series: TeSys LC1D
  • Rated operational voltage: power circuit up to 690 V AC; signalling circuit up to 690 V AC; control circuit 208 V AC
