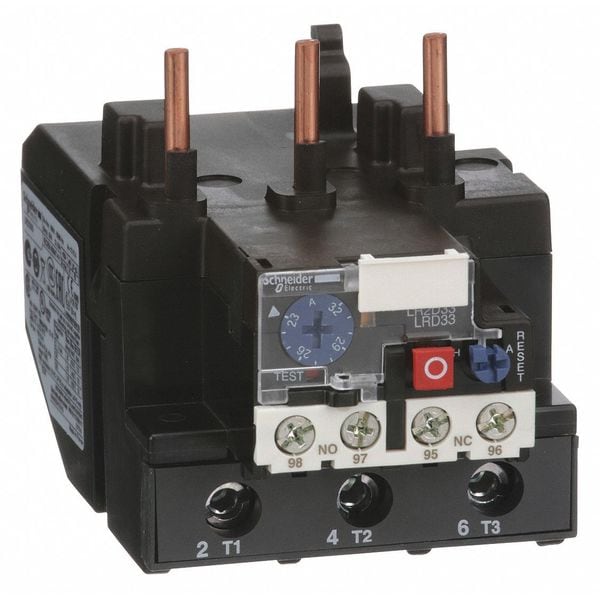

Overload Relay, 1NC/1NO, 23 A Min current, 32 A Max current, 1000V AC

Overload Relay, 1NC/1NO, 23 A Min current, 32 A Max current, 1000V AC

Mfr # LRD3353
Zoro # G2515256

$130.99

Free Shipping & Returns

Key Features

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

23 A

Maximum Overload Relay Current Setting

32 A

Trip Class

10A

Overload Protection Type

Thermal

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

LRD3353

Zoro #

G2515256

UPC #

785901519928

Country of Origin

France

Dimensions

Body Height - Relay

4.84 in

Depth

4.76

Overall Height - Relay

4.84 in

Height

4.84"

Width

2.95

Body Depth - Relay

4.76 in

Overall Height

3.19 in

Body Height

3.19 in

Details

Item

Overload Relay

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

23 A

Maximum Overload Relay Current Setting

32 A

Trip Class

10A

Overload Protection Type

Thermal

Maximum Voltage Rating

1000V AC

Standards

CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Trip Class - Overload

Number of Poles

Sensing Method

Thermal

For Use With

LC1D40 thru LC1D80 Contactor

Use With - Contactors and Starters

Mfr. Series LC1D40 to LC1D80 Contactors

Features

Differential

Starter Type

IEC

Permissible Current

0.72 A 500 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit

Relay Application

motor protection

Connections - Terminals

power circuit screw clamp terminals 1 4-35 mm² flexible without cable end || power circuit screw clamp terminals 1 4-35 mm² flexible with cable end || power circuit screw clamp terminals 1 4-35 mm² solid without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end

Product Compatibility

LC1D80 || LC1D95

Network Frequency

0 to 400 Hz

Product Name

TeSys LRD || TeSys Deca

Device Short Name

LRD

Tripping Threshold

1.14 +/- 0.06 Ir IEC 60947-4-1

Climatic Withstand

IACS E10

Phase Failure Sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

Product Or Component Type

differential thermal overload relay

Tightening Torque

control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals

Ambient Air Temperature For Operation

-20-60°C without derating IEC 60947-4-1

Network Type

AC || DC

Ambient Air Temperature For Storage

-60-70°C

Control Type

Red push-button stop || Blue push-button reset

Flame Retardance

V1 conforming to UL 94

Product Certifications

IEC || UL || CSA || CCC || EAC || ATEX INERIS || UKCA

Dielectric Strength

2.2 kV 50 Hz IEC 60947-1

Thermal Protection Adjustment Range

23-32 A

Range

TeSys

Associated Fuse Rating

4 A gG signalling circuit || 4 A BS signalling circuit

Mechanical Robustness

vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7

Thermal Overload Class

class 10A IEC 60947-4-1

Relay Style

IEC

Compatible with Series

TeSys Deca

Mounting Style

Direct To Contactor

Reset Type

Manual

IP Rating

IP20

Maximum Operating Temperature

140 Degrees F

Terminal Connection Type

Screw Clamp Terminals

Minimum Operating Temperature

-4 Degrees F

Rated Operational Voltage

1000 V AC 0 to 400 Hz power circuit IEC 60947-4-1

Rated Insulation Voltage

power circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL

Conventional Free Air Thermal Current

5 A signalling circuit

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 32 A, Minimum Overload Relay Current Setting 23 A, Trip Class 10A, Maximum Voltage Rating 1000V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
