  11. Overload Relay, 1NC/1NO, 23 A Min current, 32 A Max current, 690V AC

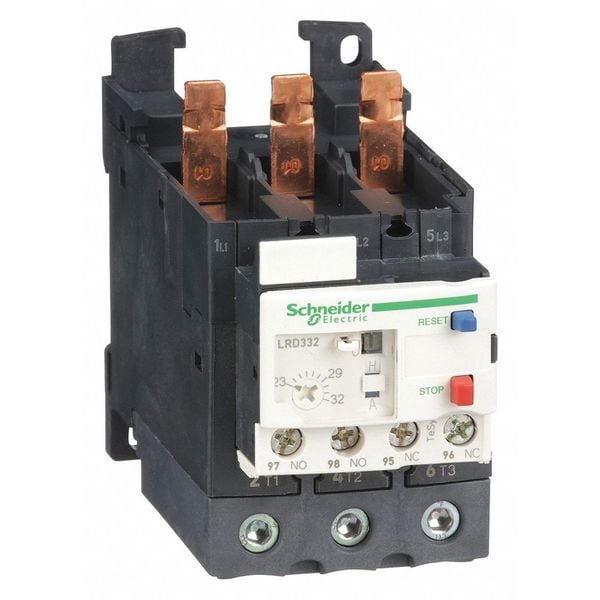

Schneider Electric Overload Relay, 1NC/1NO, 23 A Min current, 32 A Max current, 690V AC LRD332 - main

Overload Relay, 1NC/1NO, 23 A Min current, 32 A Max current, 690V AC

  • Mfr # LRD332

  • Zoro # G2471996

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
23 A
Maximum Overload Relay Current Setting
32 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LRD332
Zoro #
G2471996
UPC #
785901811640
Country of Origin
France

Dimensions

Body Height - Relay
4.84 in
Body Depth - Relay
4.84 in
Overall Height - Relay
4.84 in
Width
2.16
Height
4.84"
Depth
4.84
Overall Height
4.84 in
Body Height
4.84 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
23 A
Maximum Overload Relay Current Setting
32 A
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Features
Single Phase Sensitivity; Differential
Trip Class - Overload
10
Number of Poles
3
For Use With
TeSys D LC1D40A thru LC1D65A Contactors, Direct Mounting to LC1 with Ever Link Terminations D40A-D65A
Sensing Method
Bimetallic
Separate Mounting
Yes
Kit Required for Retrofit Mtg.
No
Use With - Contactors and Starters
Mfr. Series LC1D40A to LC1D65A Contactors
Starter Type
IEC
Ambient Air Temperature For Storage
-60-70°C
Relay Application
motor protection
Product Name
TeSys LRD || TeSys Deca
Control Type
Red push-button stop || Blue push-button reset
Product Or Component Type
differential thermal overload relay
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Thermal Overload Class
class 10A IEC 60947-4-1
Product Compatibility
LC1D40A || LC1D65A || LC1D50A
Device Short Name
LRD
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end
Climatic Withstand
IACS E10
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Range
TeSys || TeSys Deca
Network Frequency
0 to 400 Hz
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Product Certifications
IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Mechanical Robustness
shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6
Flame Retardance
V1 conforming to UL 94
Network Type
AC || DC
Permissible Current
0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Thermal Protection Adjustment Range
23-32 A
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors
Minimum Operating Temperature
-4 Degrees F
Compatible with Series
TeSys Deca
Reset Type
Manual
Relay Style
IEC
IP Rating
IP20
Mounting Style
Direct To Contactor
Terminal Connection Type
Screw Clamp Terminals
Maximum Operating Temperature
140 Degrees F
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Rated Insulation Voltage
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Trip Clss
10A

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 32 A, Minimum Overload Relay Current Setting 23 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
