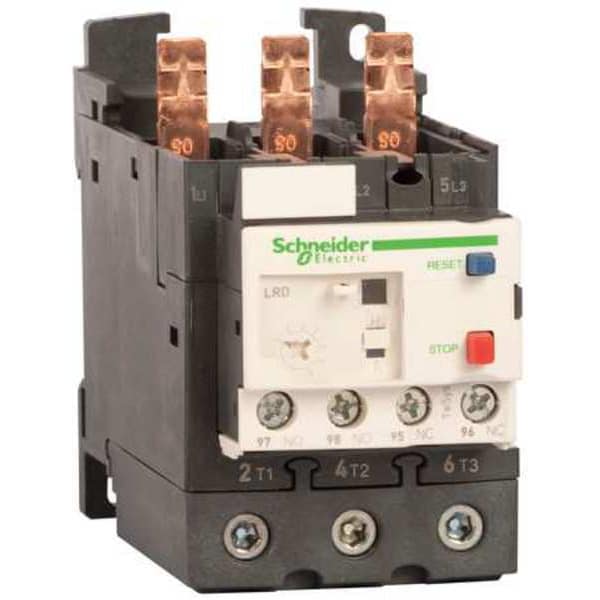

Overload Relay, 1NC/1NO, 30 A Min current, 40 A Max current, 690V AC

Overload Relay, 1NC/1NO, 30 A Min current, 40 A Max current, 690V AC

Mfr # LRD340L
Zoro # G0515706

$138.99

Free Shipping & Returns

Key Features

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

30 A

Maximum Overload Relay Current Setting

40 A

Trip Class

Overload Protection Type

Thermal

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

LRD340L

Zoro #

G0515706

UPC #

785901952497

Country of Origin

France

Dimensions

Height

2.76"

Body Depth - Relay

4.84 in

Overall Height - Relay

2.75 in

Body Width - Relay

2.17 in

Body Height - Relay

2.76 in

Width

2.17"

Depth

4.84"

Body Depth

4.84 in

Body Height

2.76 in

Body Width

2.17 in

Overall Height

2.76 in

Details

Item

Overload Relay

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

30 A

Maximum Overload Relay Current Setting

40 A

Trip Class

Overload Protection Type

Thermal

Maximum Voltage Rating

690V AC

Standards

CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Number of Poles

Overload Relay Current Range

30 to 40A

Kit Required for Retrofit Mtg.

Trip Class - Overload

Use With - Contactors and Starters

Mfr. Series LC1D40A to LC1D65A Contactors

Features

Single Phase Sensitivity; Differential

Reset Type - Relay

Manual

Item - Relay

IEC Style Overload Relay

Current Range

30.0 to 40.0A

Separate Mounting

Yes

For Use With

TeSys D LC1D40A thru LC1D65A Contactors, Direct Mounting to LC1 with Ever Link Terminations D40A-D65A

Sensing Method

Bimetallic

Voltage

600VAC

Starter Type

IEC

Associated Fuse Rating

4 A gG signalling circuit || 4 A BS signalling circuit

Phase Failure Sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

Control Type

Red push-button stop || Blue push-button reset

[Ith] Conventional Free Air Thermal Current

5 A signalling circuit

Dielectric Strength

1.89 kV 50 Hz IEC 60947-1

Product Or Component Type

differential thermal overload relay

Thermal Protection Adjustment Range

30-40 A

Mounting Support

plate, with specific accessories || rail, with specific accessories || under contactor

Tripping Threshold

1.14 +/- 0.06 Ir IEC 60947-4-1

Product Compatibility

LC1D50A || LC1D65A || LC1D40A

[Ue] Rated Operational Voltage

690 V AC 0 to 400 Hz power circuit IEC 60947-4-1

Thermal Overload Class

class 20 IEC 60947-4-1

Range

TeSys || TeSys Deca

Product Name

TeSys LRD || TeSys Deca

Mechanical Robustness

shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6

[Uimp] Rated Impulse Withstand Voltage

6 kV

Ip Degree Of Protection

IP20 conforming to IEC 60529

Temperature Compensation

-20-60Â°C

Flame Retardance

V1 conforming to UL 94

Permissible Current

3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit

Connections - Terminals

control circuit screw clamp terminals 2 1-2.5 mmÂ² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mmÂ² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mmÂ² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mmÂ² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mmÂ² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mmÂ² solid without cable end

Ambient Air Temperature For Storage

-60-70Â°C

[Ui] Rated Insulation Voltage

power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1

Product Certifications

IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || UKCA

Climatic Withstand

IACS E10

Network Type

AC || DC

Network Frequency

0 to 400 Hz

Relay Application

motor protection

Ambient Air Temperature For Operation

-20-60Â°C without derating IEC 60947-4-1

Tightening Torque

control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors

Device Short Name

LRD

Terminal Connection Type

Screw Clamp Terminals

IP Rating

IP20

Compatible with Series

TeSys Deca

Relay Style

IEC

Mounting Style

Direct To Contactor

Minimum Operating Temperature

-4 Degrees F

Reset Type

Auto, Manual

Maximum Operating Temperature

140 Degrees F

Rated Insulation Voltage

Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 40 A, Minimum Overload Relay Current Setting 30 A, Trip Class 20, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
