  11. Overload Relay, 1NC/1NO, 37 A Min current, 50 A Max current, 690V AC

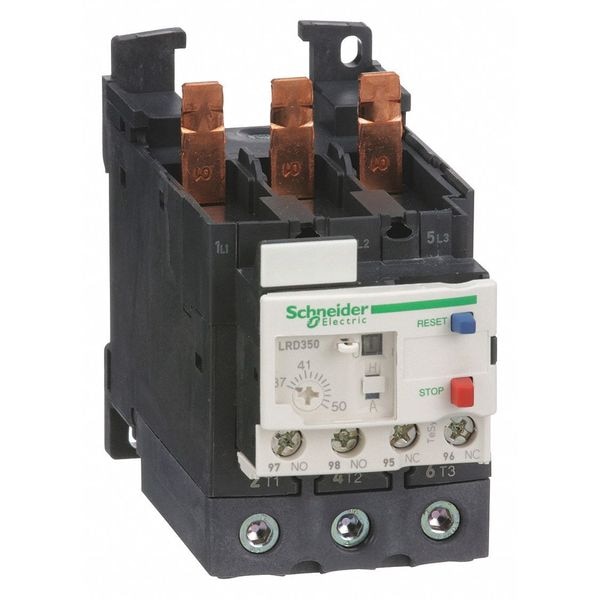

Schneider Electric Overload Relay, 1NC/1NO, 37 A Min current, 50 A Max current, 690V AC LRD350 - main

Overload Relay, 1NC/1NO, 37 A Min current, 50 A Max current, 690V AC

  • Mfr # LRD350

  • Zoro # G2080757

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
37 A
Maximum Overload Relay Current Setting
50 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LRD350
Zoro #
G2080757
UPC #
785901811671
Country of Origin
France

Dimensions

Depth
4.84
Overall Height - Relay
2.76 in
Height
2.76"
Body Depth - Relay
4.84 in
Width
2.17
Body Height - Relay
2.76 in
Body Height
2.76 in
Overall Height
2.76 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
37 A
Maximum Overload Relay Current Setting
50 A
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Trip Class - Overload
10
Sensing Method
Bimetallic
Use With - Contactors and Starters
Mfr. Series LC1D40A to LC1D65A Contactors
Separate Mounting
Yes
For Use With
TeSys D LC1D40A thru LC1D65A Contactors, Direct Mounting to LC1 with Ever Link Terminations D40A-D65A
Features
Single Phase Sensitivity; Differential
Number of Poles
3
Kit Required for Retrofit Mtg.
No
Starter Type
IEC
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Network Frequency
0 to 400 Hz
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors
Thermal Overload Class
class 10A IEC 60947-4-1
Network Type
DC || AC
Product Certifications
IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Relay Application
motor protection
Climatic Withstand
IACS E10
Permissible Current
0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Mechanical Robustness
shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Control Type
Red push-button stop || Blue push-button reset
Range
TeSys || TeSys Deca
Thermal Protection Adjustment Range
37-50 A
Product Name
TeSys LRD || TeSys Deca
Product Or Component Type
differential thermal overload relay
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Flame Retardance
V1 conforming to UL 94
Product Compatibility
LC1D65A || LC1D50A || LC1D40A
Device Short Name
LRD
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end
Ambient Air Temperature For Storage
-60-70°C
Terminal Connection Type
Screw Clamp Terminals
Reset Type
Manual
Maximum Operating Temperature
140 Degrees F
Mounting Style
Direct To Contactor
Relay Style
IEC
Minimum Operating Temperature
-4 Degrees F
IP Rating
IP20
Compatible with Series
TeSys Deca
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Insulation Voltage
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Trip Clss
10A

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 50 A, Minimum Overload Relay Current Setting 37 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
