- Item

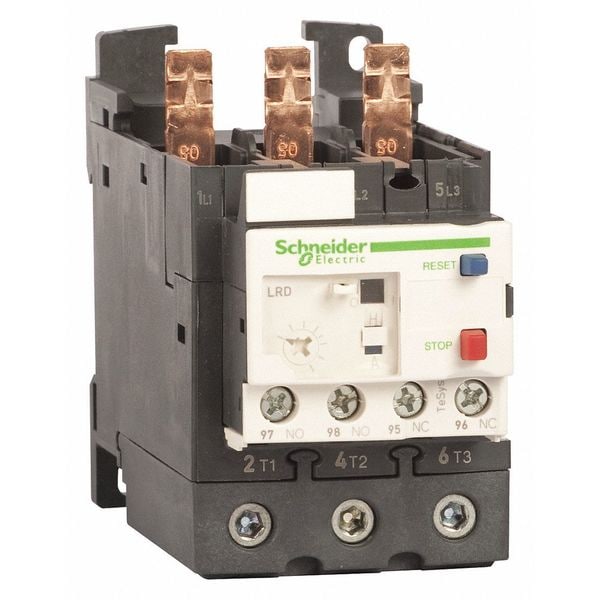

- Overload Relay
- Auxiliary Contact Form
- 1NC/1NO
- Minimum Overload Relay Current Setting
- 9 A
- Maximum Overload Relay Current Setting
- 13 A
- Trip Class
- 10A
- Overload Protection Type
- Thermal
- Maximum Voltage Rating
- 690V AC
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || EN 50495
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Thermal Overload Class
- class 10A IEC 60947-4-1
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- Associated Fuse Rating
- 4 A gG signalling circuit || 4 A BS signalling circuit
- Product Certifications
- IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Product Or Component Type
- differential thermal overload relay
- Thermal Protection Adjustment Range
- 9-13 A
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors
- Control Type
- Red push-button stop || Blue push-button reset
- Mechanical Robustness
- shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6
- Temperature Compensation
- -20-60°C
- Relay Application
- motor protection
- Device Short Name
- LRD
- Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end
- Tripping Threshold
- 1.14 +/- 0.06 Ir IEC 60947-4-1
- Ambient Air Temperature For Operation
- -20-60°C without derating IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Range
- TeSys || TeSys Deca
- Product Compatibility
- LC1D40A || LC1D50A || LC1D65A
- Network Type
- AC || DC
- Phase Failure Sensitivity
- tripping current 130 % of Ir on two phase, the last one at 0
- Flame Retardance
- V1 conforming to UL 94
- Climatic Withstand
- IACS E10
- Product Name
- TeSys LRD || TeSys Deca
- Permissible Current
- 0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
- Mounting Support
- plate, with specific accessories || rail, with specific accessories || under contactor
- Ambient Air Temperature For Storage
- -60-70°C
- [Ue] Rated Operational Voltage
- 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
- Network Frequency
- 0 to 400 Hz
- Rated Insulation Voltage
- Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
- Trip Clss
- 10A
