  11. Overload Relay, 1NC/1NO, 90 A Min current, 150 A Max current, 690V AC

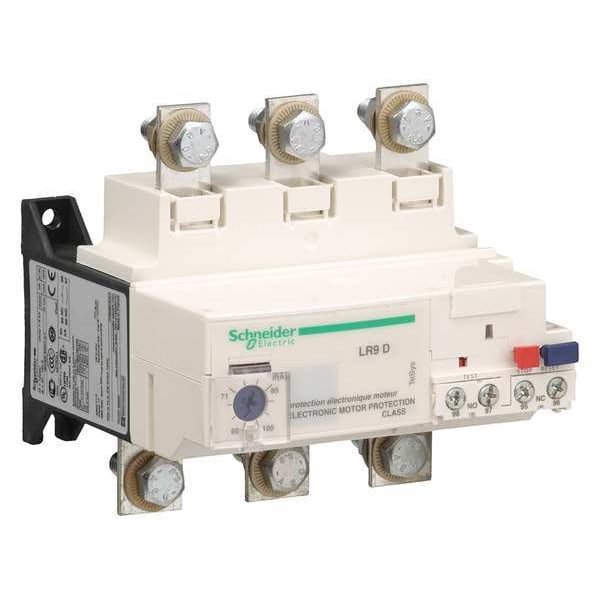

Schneider Electric Overload Relay, 1NC/1NO, 90 A Min current, 150 A Max current, 690V AC LR9D5369 - main

Overload Relay, 1NC/1NO, 90 A Min current, 150 A Max current, 690V AC

  • Mfr # LR9D5369

  • Zoro # G0524395

product price: $438.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
90 A
Maximum Overload Relay Current Setting
150 A
Trip Class
10
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR9D5369
Zoro #
G0524395
UPC #
785901787938
Country of Origin
France

Dimensions

Height
3.98"
Body Depth - Relay
5.19 in
Width
4.72
Body Height - Relay
3.98 in
Overall Height - Relay
3.98 in
Depth
5.19
Body Height
4.65 in
Overall Height
4.65 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
90 A
Maximum Overload Relay Current Setting
150 A
Trip Class
10
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Trip Class - Overload
10
Use With - Contactors and Starters
Mfr. Series LC1D115 to LC1D150 Contactors
Features
Differential
Sensing Method
Thermal
For Use With
LC1D115 thru LC1D150 IEC Contactors, 115 to 150A
Number of Poles
3
Starter Type
IEC
Control Type
Red push-button stop || Blue push-button reset
Relay Application
motor protection
Climatic Withstand
IACS E10
Thermal Protection Adjustment Range
90-150 A
Network Type
AC
Supply Voltage Limits
17-32 V
Switching Capacity In Ma
0 to 150 mA
Mechanical Robustness
vibrations2 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks13 Gn for 11 ms IEC 60068-2-7
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Phase Failure Sensitivity
tripping in 4 s +/- 20 % IEC 60947-4-1
Network Frequency
50-60 Hz
Ambient Air Temperature For Storage
-60-70°C
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Thermal Overload Class
class 10 IEC 60947-4-1
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Product Or Component Type
electronic thermal overload relay
Product Compatibility
NSX circuit breaker || LC1D150 || LC1D115
Connections - Terminals
power circuit bars || control circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end || control circuit screw clamp terminals 2 0.5-1.5 mm² flexible without cable end || alarm circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end
Range
TeSys
Signalling Function
alarm
Product Certifications
UL || CSA || CCC || UKCA
Device Short Name
LR9D
Product Name
TeSys LRD || TeSys Deca
Operating Altitude
<= 6561.68 ft (2000 m) without derating
Tripping Threshold
1.05 +/- 0.06 In alarm IEC 60947-4-1 || 1.12 +/- 0.06 In de-energisation IEC 60947-4-1
Tightening Torque
alarm circuit 0.45 N.m screw clamp terminals || power circuit 18 N.m bars M8 || control circuit 1.2 N.m screw clamp terminals
Maximum Voltage Drop
<2.5 V closed state
Terminal Connection Type
Screw Clamp Terminals
Reset Type
Auto, Manual
Relay Style
IEC
Mounting Style
Direct To Contactor
IP Rating
IP20
Compatible with Series
TeSys Deca
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
140 Degrees F
Rated Insulation Voltage
Power circuit 1000 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 150 A, Minimum Overload Relay Current Setting 90 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
