  13. Panel Flange, Enclosed Power Relay, Square, 30 A, 5 Pins, Faston Connector

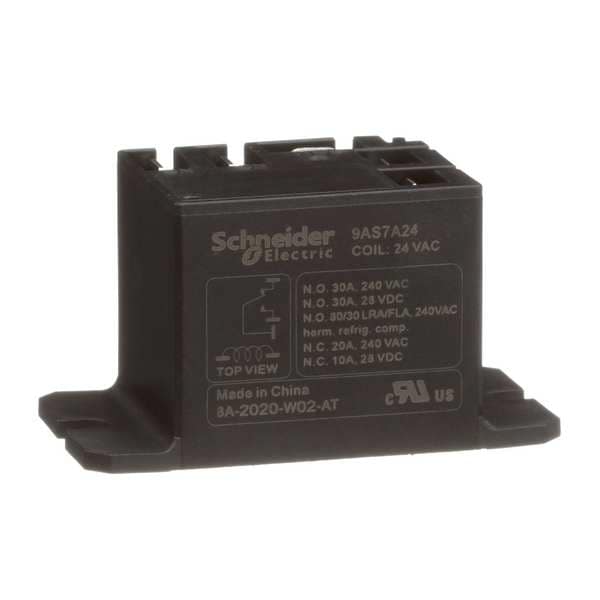

Schneider Electric Panel Flange, Enclosed Power Relay, Square, 30 A, 5 Pins, Faston Connector 9AS7A24 - main

CAD Viewer & Download Files

Panel Flange, Enclosed Power Relay, Square, 30 A, 5 Pins, Faston Connector

  • Mfr # 9AS7A24

  • Zoro # G2398401

CAD Available
product price: $9.99
/ea

Key Features

CAD Drawing
Mounting Style
Panel Flange
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
5
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9AS7A24
Zoro #
G2398401
UPC #
-
Country of Origin
China

Dimensions

Dimensions
1.10"H, 1.06"W, 1.95"D
Overall Height - Relay
1.1 in
Body Depth
1.976 in
Body Height
1.094 in
Overall Depth
1.09 in
Body Width
1.083 in
Depth
1.09 in (27.8 mm)
Width
1.07 in (27.3 mm)

Details

Item
Enclosed Power Relay
Mounting Style
Panel Flange
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
5
Coil Voltage
24V AC
Current Rating
30 A
Contact Form
SPDT
Contact Rating (AC)
30 A @ 240V
Contact Rating (DC)
30 A @ 28V
Contact Material
Silver Alloy
Features
Ballast Load Ratings, Class F Coil Insulation
Hz
50/60
Coil Rating
2.8VA, 1.0W
Number of Poles
1
Power Consumption - Relay
2.8 VA
Contact Amp Rating (Resistive)
30A @ 240VAC (NO), 15A @ 240VAC (NC)
Standards
UL60947-4-1
Contact Amp Rating (Inductive)
22A @ 120V AC-8a (NO), 30A @ 240V AC-8a (NO), 12A @ 240 V AC-8a (NC), 10A @ 277 V AC-8a (NC)
Operating Current
10 A at 277V AC-5a (NO Ballast), 10 A at 277V AC-8a (NC Full Load), 10 A at 28V DC (NC Resistive Load), 12 A at 240V AC-8a (NC Full Load), 20 A at 240V AC-1 (NC), 22 A at 120V AC-8a (NO Full Load), 3 A at 277V AC-5a (NC Ballast), 30 A at 240V AC (NO), 30 A at 240V AC-8a (NC Locked Rotor), 30 A at 240V AC-8a (NO Full Load), 30 A at 28V DC (NO Resistive Load), 33 A at 277V AC-8a (NC Locked Rotor), 80 A at 240V AC-8a (NO Locked Rotor), 98 A at 120V AC-8a (NO Locked Rotor)
Response Time
20 msec
Maximum Switching Voltage
277V AC, 28V DC
Electrical Operating Durability
100,000
Horsepower @ 240V AC
2 hp
Horsepower @ 120V AC
1 hp
Mechanical Operating Durability
10,000,000
Sealing
Sealed
Dielectric Strength
1,500V Between Contacts with Micro Disconnection, 2,500V AC Between Coil and Contact
Series
9A Power Series
Maximum Operating Temperature
104 Degrees F
Frequency
50/60 Hz
Resistance Properties
Shock-Resistant, Vibration-Resistant
Input Voltage
24V AC
For Use With
Alarm Systems, HVAC Equipment, Motor Controls
Coil Resistance
100 ohm
Motor Rated
Yes
Minimum Operating Temperature
-40 Degrees F
Weight
1.12 oz
Power Consumption
2.6 VA
Dielectric Voltage
2500 V AC between coil and contact || 1500 V between contacts with micro disconnection
Switching Voltage
277 V AC || 28 V DC
Protection Category
RT III
CAD Available
Yes
Vibration Resistance
+/- 0.75 mm 10 to 55 Hz operating; +/- 0.75 mm 10 to 55 Hz not operating
Release Time
10 ms
Rated Power in HP
1 hp at 125 V AC, NO; 2 hp at 250 V AC, NO; 0.25 hp at 125 V AC, NC; 0.5 hp at 250 V AC, NC
Network Frequency
50-60 Hz
Rated Impulse Withstand Voltage
4 kV 1.2/50µs
Rated Insulation Voltage
320 V
Minimum Switching Capacity
5 W at 1 A, 5 V DC; 12 VA at 1 A, 12 V AC
Product Certifications
UL
Operating Position
Any position
Shock Resistance
10 gn operating; 100 gn not operating
Operate Time
20 ms
Average Resistance
100 Ohm at 73°F (23°C) +/- 10 %
Product Range
Harmony
Drop-out Voltage Threshold
>= 0.2 Uc
Load Current
30 A NO; 20 A NC
Rated Power in VA
470 VA at 240 V, NO on pilot duty; 275 VA at 240 V, NC on pilot duty
Control Circuit Voltage Limits
0.85...1.1 Uc
[Uc] control circuit voltage
24 V AC 50-60 Hz
Connections Terminals
Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm; Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm
ambient temperature range - operational
-40 to 104°F (-40 to 40°C)
Pollution Degree
3
Ambient Temperature Range - Storage
-40 to 185°F (-40 to 85°C)
Status Indicator
No Indicator

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form SPDT, Electrical Connection Faston Terminal, Number of Pins 5, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 277V-5a (NO), 10 A @ 277V-8a (NC), 12 A @ 240V-8a (NC), 20 A @ 240V-1 (NC), 22 A @ 120V-8a (NO), 3 A @ 277V-5a (NC), 30 A @ 240V (NO), 30 A @ 240V-8a (NC), 30 A @ 240V-8a (NO), 33 A @ 277V-8a (NC), 80 A @ 240V-8a (NO), 98 A @ 120V-8a (NO)
