- Item

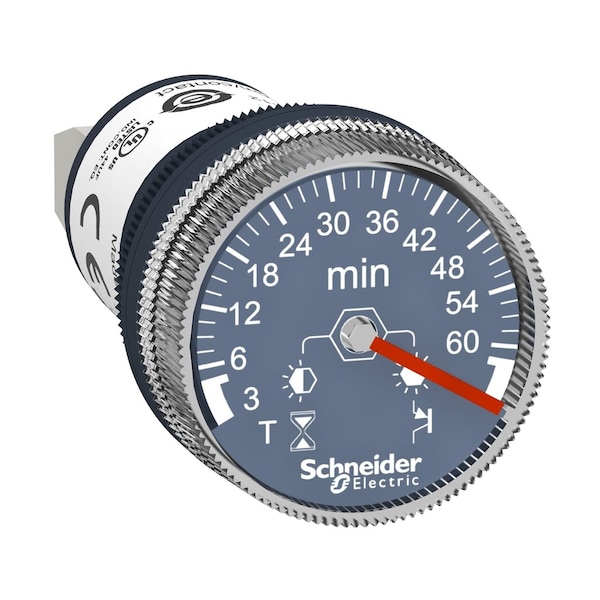

- Panel mounted timer monofunction,plasti
- Standards
- UL 508, IEC 61812-1
- [Us] Rated Supply Voltage
- 24 V DC
- Tightening Torque
- 0.5 N.m
- Voltage Drift
- +/- 0.2 %/V
- Disturbance Radiated/Conducted
- class B EN 50022
- Output Short-Circuit Protection
- yes
- Power Consumption In W
- 1 W
- Ambient Air Temperature For Operation
- -20-60°C
- Device Presentation
- monolithic product
- Time Delay Range
- 3...60 min
- Overvoltage Category
- class 3 IEC 60536, class 3 IEC 60664-1
- Protection Type
- reverse polarity protection, overvoltage protection
- Maximum Voltage Drop
- 3 V
- Dielectric Strength
- 1500 V IEC 61812-1
- Immunity To Radioelectric Fields
- 10 V level 3 IEC 61000-4-6
- Surge Withstand
- 1 kV, level 2 IEC 61000-4-5
- Range of Product
- Harmony XB5
- Supply Voltage Limits
- 16.8-31.2 V DC
- Connections - Terminals
- screw terminals 1 x 4 mm² IEC 60947-1, screw terminals 1 x 2.5 mm² IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1, 4 kV IEC 60664-1
- Shock Resistance
- +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27
- Fixing Collar Material
- plastic
- Line Rated Current
- 200 mA at 20°C( derating 1.5 mA per°C)
- Ip Degree of Protection
- IP65 front: conforming to IEC 60529, IP20 back: conforming to IEC 60529
- Temperature Drift
- +/- 0.05 %/°C
- Output Type
- open collector PNP
- Time Delay Type
- A
- Vibration Resistance
- 0.15 mm 10-60 Hz)IEC 60068-2-6, 2 gn 60-150 Hz)IEC 60068-2-6
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3, 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3, 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3
- Electromagnetic Compatibility
- electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011
- Temporary Permissible Current
- 10 A 0.01 s
- Shape of Signaling Unit Head
- round
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Setting Accuracy of Time Delay
- +/- 10 % of full scale 25°C IEC 61812-1
- Product or Component Type
- timer
- Reset Time
- 5 ms after time delay on de-energisation, 7 ms during time delay on de-energisation
- [Ui] Rated Insulation Voltage
- 50 V IEC 60947-1, 50 V IEC 60664-1
- Pollution Degree
- 3 IEC 60664-1
- Ambient Air Temperature For Storage
- -20-80°C
- Bezel Material
- plastic
- Minimum Switching Current
- 10 mA
- Maximum Residual Current
- 0.1 mA
- Local Signalling
- LED green, flashing timing in progress, LED, steady no timing in progress and output relay energised
- Repeat Accuracy
- +/- 0.5 %
- Shape Of Signaling Unit Head
- round
- Product Or Component Type
- timer
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25°C EN/IEC 61812-1
- Ip Degree Of Protection
- front IP65 IEC 60529 || back IP20 IEC 60529
- Product Certifications
- UL Listed || CE
