  13. Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3.60s, 100.240V AC DC

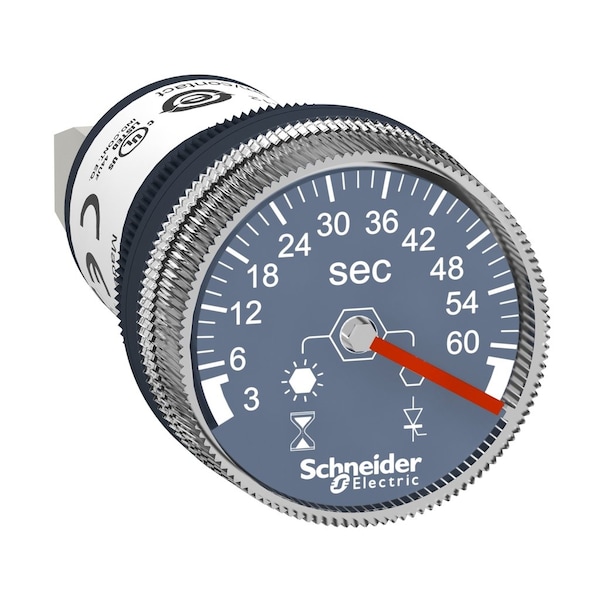

Schneider Electric Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3.60s, 100.240V AC DC XB5DTGM3 - main

Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3.60s, 100.240V AC DC

  • Mfr # XB5DTGM3

  • Zoro # G700905329

product price: $52.69
/ea

Key Features

Height
62 mm
Thickness
1-6 mm
Standards
IEC 61812-1, UL 508
Electromagnetic Compatibility
electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011
Immunity To Radioelectric Fields
10 V level 3 IEC 61000-4-6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5DTGM3
Zoro #
G700905329
UPC #
-
Country of Origin
France

Dimensions

Height
62 mm
Thickness
1-6 mm
Diameter
29 mm
Mounting Diameter
22 mm

Details

Item
Panel mounted timer monofunction,plasti
Standards
IEC 61812-1, UL 508
Electromagnetic Compatibility
electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011
Immunity To Radioelectric Fields
10 V level 3 IEC 61000-4-6
Protection Type
overvoltage protection
Repeat Accuracy
+/- 0.5 %
Resistance To Fast Transients
2 kV level 3 IEC 61000-4-4
Time Delay Type
A
Time Delay Range
3...60 s
Vibration Resistance
0.15 mm 10-60 Hz)IEC 60068-2-6, 2 gn 60-150 Hz)IEC 60068-2-6
[Us] Rated Supply Voltage
110...230 V AC/DC
Setting Accuracy of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Resistance To Electromagnetic Fields
10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3, 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3, 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3
Output Short-Circuit Protection
no
Temperature Drift
+/- 0.05 %/°C
Maximum Residual Current
5 mA
Shape of Signaling Unit Head
round
Power Consumption In Va
1.5 VA
Surge Withstand
2 kV, level 3 IEC 61000-4-5
Supply Voltage Limits
93.5-253 V AC/DC
Tightening Torque
0.5 N.m
Ambient Air Temperature For Operation
-20-60°C
Local Signalling
LED green, steady timing in progress, LED, off no timing in progress and output relay energised
Product or Component Type
timer
Power Consumption In W
1 W
Bezel Material
plastic
Output Type
thyristor
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1, 4 kV IEC 60664-1
Fixing Collar Material
plastic
Minimum Switching Current
10 mA
Device Presentation
monolithic product
Ip Degree of Protection
IP65 front: conforming to IEC 60529, IP20 back: conforming to IEC 60529
Voltage Drift
+/- 0.2 %/V
Shock Resistance
+/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27
Disturbance Radiated/Conducted
class B EN 50022
[Ui] Rated Insulation Voltage
250 V IEC 60947-1, 250 V IEC 60664-1
Reset Time
30 ms after time delay on de-energisation, 60 ms during time delay on de-energisation
Ambient Air Temperature For Storage
-20-80°C
Dielectric Strength
1500 V IEC 61812-1
Pollution Degree
3 IEC 60664-1
Temporary Permissible Current
10 A 0.01 s
Overvoltage Category
class 3 IEC 60536, class 3 IEC 60664-1
Connections - Terminals
screw terminals 1 x 4 mm² IEC 60947-1, screw terminals 1 x 2.5 mm² IEC 60947-1
Range of Product
Harmony XB5
Maximum Voltage Drop
5 V
Shape Of Signaling Unit Head
round
Setting Accuracy Of Time Delay
+/- 10 % of full scale 25°C EN/IEC 61812-1
Ip Degree Of Protection
front IP65 IEC 60529 || back IP20 IEC 60529
Product Certifications
CE || UL Listed
Product Or Component Type
timer

Description

Panel mounted timer monofunction,plasti
