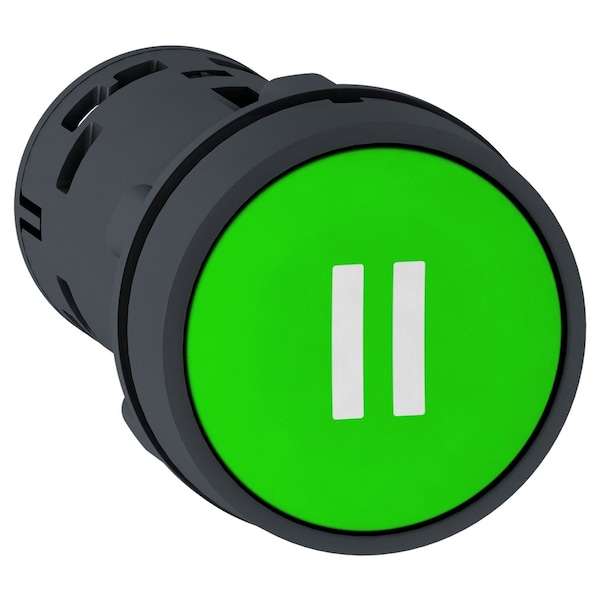

PB-Spring Rtn, green -1NO-WHITE "II (Discontinued)

PB - Spring Rtn,green -1NO - WHITE "II"

IEC 60947-1; JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; UL 508; JIS C8201-1

TH

7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1

5 gn 2 to 500 Hz)IEC 60068-2-6

1000000 cycles

1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C

With (only NO)

Monolithic product

0.1 A 250 V, DC-13, R300 IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 IEC 60947-5-1; 0.3 A 240 V, AC-14, D300 IEC 60947-5-1; 0.6 A 120 V, AC-14, D300 IEC 60947-5-1

-40 to 158°F (-40 to 70°C)

spring return

Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end IEC 60947-1

Fixing hole 0.89 in (22.5 mm) 22.3 +0.4/0 IEC 60947-1

Fixing nut beneath head 17.70 to 21.24 lbf.in (2 to 2.4 N.m)

-13 to 158°F (-25 to 70°C)

Greater than or Equal to 30 x 40 mm support panel) metal 0.04 to 0.24 in (1 to 6 mm); Greater than or Equal to 30 x 40 mm support panel) plastic 0.08 to 0.24 in (2 to 6 mm)

Class II IEC 61140

250 V 3)IEC 60947-1

Green flush, II white)

NEMA 12 UL 50 E; NEMA 3 UL 50 E

IP20 IEC 60529 rear face; IP65 IEC 60529 front face)

1 NO

Slow-break

(13-14)NO

Push-button

50 gn 11 ms) half sine wave acceleration IEC 60068-2-27; 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

4 A cartridge fuse gG IEC 60947-5-1

GOST; CCC

4 kV IEC 60947-1

Cross JIS No 1; Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Round
