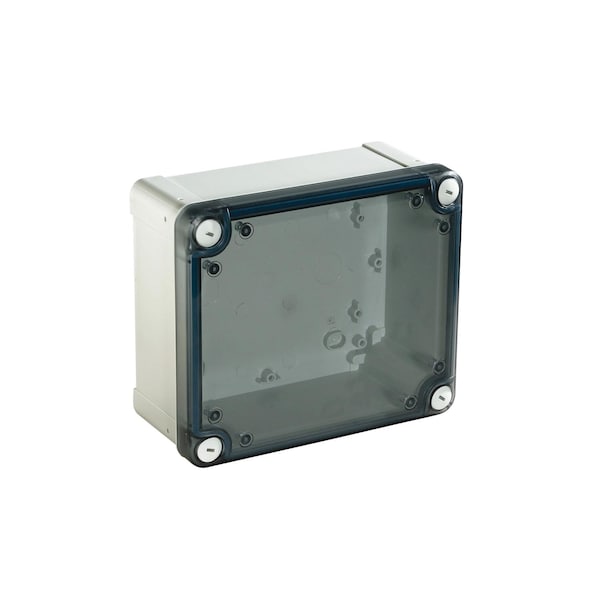

Schneider Electric PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20 NSYTBP16128T - main

PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20

  • Mfr # NSYTBP16128T

  • Zoro # G000905302

product price:  $30.55
/ea
Sold in multiples of 2 for $61.10

Key Features

Material
polycarbonate
Standards
UL 508 A || IEC 62208
Color
Gray RAL 7035) || Transparent
Width
121 mm
Height
164 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
NSYTBP16128T
Zoro #
G000905302
UPC #
-
Country of Origin
Spain

Dimensions

Width
121 mm
Height
164 mm
Depth
87 mm
Internal Width
105 mm
Internal Height
150 mm
Internal Depth
80 mm

Details

Item
PC box IP66 IK08 RAL7035 Int.H150W105D80
Material
polycarbonate
Standards
UL 508 A || IEC 62208
Color
Gray RAL 7035) || Transparent
Device Composition
1 body || 1 cover || 4 cover screw
Ik Degree Of Protection
IK08 IEC 62262
Ip Degree Of Protection
IP66 conforming to NEMA 4.4X
Lock Type
captive screw flat outside sealed area
Product Name
Thalassa TBP
Mounting Location
outdoor (with canopy or shelter and anticondensation valve)
Type Of Front Cover
low transparent cover
Product Certifications
TUV || UL
Device Application
multi-purpose
Removable Parts
cover by captive screws
Cover Fixing
plastic screws
Fire Resistance
960°C
Ambient Air Temperature For Operation
-25-80°C
Product Or Component Type
industrial box
Range
Thalassa
Body Type
one piece moulded
Ambient Air Temperature For Storage
-15-60°C
Electrical Insulation Class
class II
Enclosure Mounting
wall mounted
Operating Temperature
-13 to 176°F (-25 to 80°C)

Description

PC box IP66 IK08 RAL7035 Int.H150W105D80
