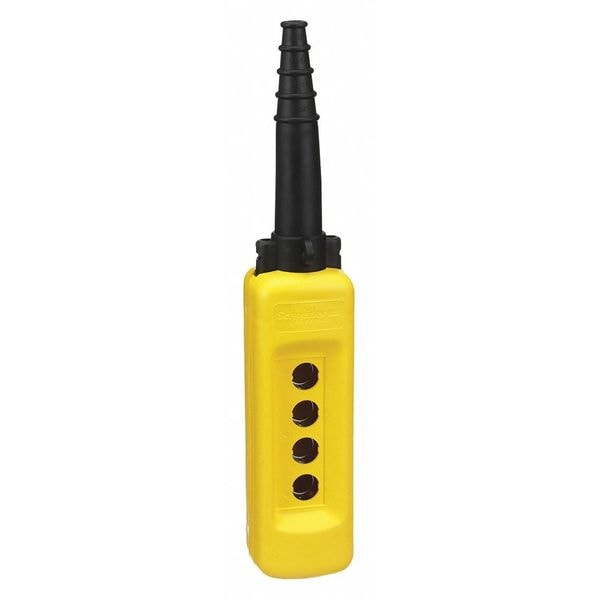

Schneider Electric Pendant Enclosure, 22mm, 4 Holes XACA04H7 - main

Pendant Enclosure, 22mm, 4 Holes

  • Mfr # XACA04H7

  • Zoro # G0299442

product price: $201.99
/ea
Free Shipping & Returns

Key Features

Type of Operator
double insulated
Color
Yellow
NEMA Rating
1, 4, 4X
Standards
CSA, EN/IEC, IP65, RoHS, UL Listed
Hole Size
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACA04H7
Zoro #
G0299442
UPC #
785901803430
Country of Origin
Czechia

Dimensions

Hole Size
22 mm
Rubber Sleeve Cable Entry Size - Minimum
0.31 in
Compatible Panel Cutout Diameter
22 mm
Rubber Sleeve Cable Entry Size - Maximum
1.02 in

Details

Item
Pendant Enclosure
Type of Operator
double insulated
Color
Yellow
NEMA Rating
1, 4, 4X
Standards
CSA, EN/IEC, IP65, RoHS, UL Listed
Material
Plastic
Cable Entry
0.31 in to 1.02 in
Number of Holes
4
Operator Color
yellow
Includes
Cable Sleeve
Enclosure Material
polypropylene
IP Rating
IP65
Protective Treatment
TH
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Overvoltage Category
Class II IEC 61140
Product Certifications
CSA; GOST; CCC; UL
Enclosure Type
Empty enclosure
Guard Rail
Without
Vibration Resistance
15 gn 10 to 500 Hz)IEC 60068-2-6
Number Of Cut-Out
4 cut-outs
Product Or Component Type
Pendant control station
Mechanical Durability
1000000 cycles
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Vertical Operator Cut-Out Centre
1.18 in (30 mm)
Electrical Circuit Type
Control circuit
IK Degree Of Protection
IK08 EN 50102
Shock Resistance
100 gn IEC 60068-2-27
NEMA Enclosure Rating
1, 4, 4X, 5
Compatible with Series
XAC
Cable Entry Type
Rubber Sleeve
Compatible with Brand
Schneider

Description

Pendant Enclosure, Number of Holes 4, Cable Entry 0.31 in to 1.02 in, NEMA Rating 1, 4, 4X, Color Yellow, Hole Size 22 mm, Material Plastic, Includes Cable Sleeve, Standards CSA, EN/IEC, IP65, RoHS, UL Listed
