  15. Pendant Station 600Vac 10A Xac +Options

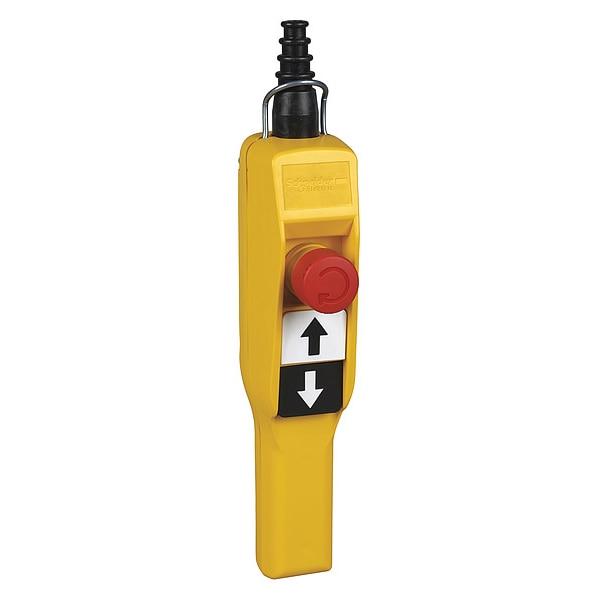

Schneider Electric Pendant Station 600Vac 10A Xac +Options XACA2013 - main

Pendant Station 600Vac 10A Xac +Options

  • Mfr # XACA2013

  • Zoro # G0562409

product price: $128.99
/ea
Free Shipping & Returns

Key Features

Legend
Emergency Stop
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
2NO/1NC
Number of Operators
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACA2013
Zoro #
G0562409
UPC #
785901558774
Country of Origin
France

Dimensions

Width
3.35 in
Height
11.61 in
Depth
2.6 in
Overall Depth
2.6 in
Overall Width
3.35 in
Overall Height
11.61 in
Hub Size - Maximum
9/16 in
Manufacturer Warranty Length
18 mo

Details

Item
Pendant Control Station
Legend
Emergency Stop
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
2NO/1NC
Number of Operators
3
NEMA Rating
4X
Hub Style
Dead-End
Series
XACA
Standards
CSA, UL Listed
Housing Color
Yellow
Action
Maintained/Momentary/Momentary
Hub
9/32 in to 19/32 in
Mechanical Interlock
Yes
Terminal Connection
screw clamp terminals
IP Rating
IP65
Housing Material
Polypropylene
Number of Speeds
1
Enclosure Material
Plastic
AC Contact Rating
1.2 A @ 600 V, 3 A @ 250 V
Enclosure Color
Yellow
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V
Operator Color
Black, Red, White
Product Type
Pendant Control Station
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Control Station Composition
2 push-buttons + 1 emergency stop
Short-Circuit Protection
10 A fuse protection cartridge gG
Terminals Description Iso N°2
(11-12)NC
Maximum Resistance Across Terminals
25 MOhm
Electrical Circuit Type
control circuit
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Connections - Terminals
screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Protective Treatment
TH
Operating Force
13-15 N
Mechanical Durability
1000000 cycles
Terminals Description Iso N°1
(13-14)NO
Product Compatibility
ZB2BE101 for each direction || ZB2BE102 for emergency stop
Product Certifications
CSA || UL
Shock Resistance
100 gn IEC 60068-2-27
[Ithe] Conventional Enclosed Thermal Current
10 A
Device Short Name
XACA pistol grip
Contact Operation
slow-break
Control Type
intuitive
Enclosure Type
complete ready for use
Control Station Colour
yellow
Control Station Application
control of single speed hoist motor
Control Station Type
double insulated
Ip Degree Of Protection
IP65 conforming to IEC 60529
Mechanical Interlocking
with mechanical interlocking
Contact Code Designation
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Terminal Identifier
(11-12)NC || (13-14)NO
Overvoltage Category
class II IEC 61140
Rated Operational Power In W
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage
600 V 3)IEC 60947-1
Product Or Component Type
pendant control station
Cable Entry
rubber sleeve with stepped entry 7-15 mm
Ambient Air Temperature For Operation
-25-70°C
Control Button Type
first push-button 1 NO raise, slow || second push-button 1 NO lower, slow || stop push-button Ø 30 mm 1 NC latching
Ambient Air Temperature For Storage
-40-70°C
Ik Degree Of Protection
IK08 EN 50102
Conventional Enclosed Thermal Current
10 A
Terminals Description Iso N°2
(11-12)NC
Terminals Description Iso N°1
(13-14)NO
Operating Temperature - Minimum
-13 Degrees F
Operator Configuration
(2) Push Buttons/Emergency Stop
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Includes Mechanical Interlock
Mechanical Interlock Included
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated
Maintained Action Release
Twist
NEMA Enclosure Rating
1, 4, 4X, 5

Description

Pendant Control Station, Number of Operators 3, Number of Pilot Lights 0, Legend Emergency Stop, Type of Operator Push Button, Action Maintained/Momentary/Momentary, Operator Color Black, Red, White, Contact Form 2NO/1NC, Mechanical Interlock Yes, NEMA Rating 4X, IP Rating IP65, Hub 9/32 in to 19/32 in, Height 11.61 in, Width 3.35 in, Depth 2.6 in, Enclosure Material Plastic, Enclosure Color Yellow, Standards CSA, UL Listed
