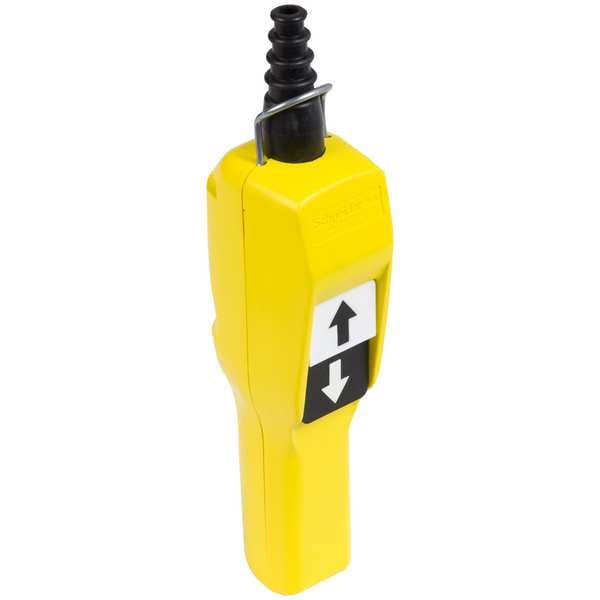

Pendant Station 600Vac 10A Xac +Options

Pendant Station 600Vac 10A Xac +Options

Mfr # XACA211
Zoro # G0862200

$210.99

Free Shipping & Returns

Key Features

Legend

Up/Down

Number of Pilot Lights

Type of Operator

Push Button

Contact Form

1NO

Number of Operators

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

XACA211

Zoro #

G0862200

UPC #

785901446842

Country of Origin

France

Dimensions

Overall Height

11.61 in

Overall Width

2.05 in

Hub Size - Maximum

9/16 in

Manufacturer Warranty Length

18 mo

Overall Depth

2.8 in

Details

Item

Pendant Control Station

Legend

Up/Down

Number of Pilot Lights

Type of Operator

Push Button

Contact Form

1NO

Number of Operators

NEMA Rating

Hub Style

Dead-End

Series

XACA

Standards

CSA, UL Listed

Housing Color

Yellow

Action

Momentary/Momentary

Hub

9/32 in to 19/32 in

Mechanical Interlock

Yes

Terminal Connection

screw clamp terminals

IP Rating

IP65

Housing Material

Polypropylene

Number of Speeds

Enclosure Material

Plastic

AC Contact Rating

1.2 A @ 600 V, 3 A @ 250 V

DC Contact Rating

0.1 A @ 600 V, 0.27 A @ 250 V

Enclosure Color

Yellow

Operator Color

Black, White

Product Type

Pendant Control Station

Connections - Terminals

screw clamp terminals, 1 x 2.5 mmÂ² with or without cable end || screw clamp terminals, 2 x 1.5 mmÂ² with or without cable end

Rated Operational Power In W

40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Vibration Resistance

15 gn 10-500 Hz)IEC 60068-2-6

Operating Force

13-15 N

[Ithe] Conventional Enclosed Thermal Current

10 A

Contact Code Designation

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Terminals Description Iso N°1

(13-14)NO

Control Station Application

control of single speed hoist motor

Control Button Type

first push-button 1 NO raise, slow || second push-button 1 NO lower, slow

Product Or Component Type

pendant control station

Ambient Air Temperature For Storage

-40-70Â°C

Overvoltage Category

class II IEC 61140

Device Short Name

XACA pistol grip

Electrical Circuit Type

control circuit

Short-Circuit Protection

10 A fuse protection cartridge gG

Product Compatibility

ZB2BE101 for each direction

Maximum Resistance Across Terminals

25 MOhm

Mechanical Interlocking

with mechanical interlocking

Ambient Air Temperature For Operation

-25-70Â°C

Product Certifications

UL || CSA

Mechanical Durability

1000000 cycles

[Ui] Rated Insulation Voltage

600 V 3)IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947-1

Control Station Type

double insulated

Ik Degree Of Protection

IK08 EN 50102

Ip Degree Of Protection

IP65 conforming to IEC 60529

Protective Treatment

Cable Entry

rubber sleeve with stepped entry 7-15 mm

Shock Resistance

100 gn IEC 60068-2-27

Contact Operation

slow-break

Terminal Identifier

(11-12)NC || (13-14)NO

Control Station Composition

2 booted push-buttons

Enclosure Type

complete ready for use

Control Station Colour

yellow

Control Type

intuitive

Conventional Enclosed Thermal Current

10 A

Terminals Description Iso NÂ°1

(13-14)NO

Operating Temperature - Maximum

158 Degrees F

NEMA Enclosure Rating

1, 4, 4X, 5

Operator Configuration

(2) Push Buttons

Includes Mechanical Interlock

Mechanical Interlock Included

Operating Temperature - Minimum

-13 Degrees F

Resistance Properties

Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof

Hazardous Location Specification

Not Rated

Description

Pendant Control Station, Number of Operators 2, Number of Pilot Lights 0, Legend Up/Down, Type of Operator Push Button, Action Momentary/Momentary, Operator Color Black, White, Contact Form 1NO, Mechanical Interlock Yes, NEMA Rating 4X, IP Rating IP65, Hub 9/32 in to 19/32 in, Enclosure Material Plastic, Enclosure Color Yellow, Standards CSA, UL Listed
