  13. Pendant Station Contact 240Vac 3A Xac
Shop All Push Button Contact Blocks
Schneider Electric

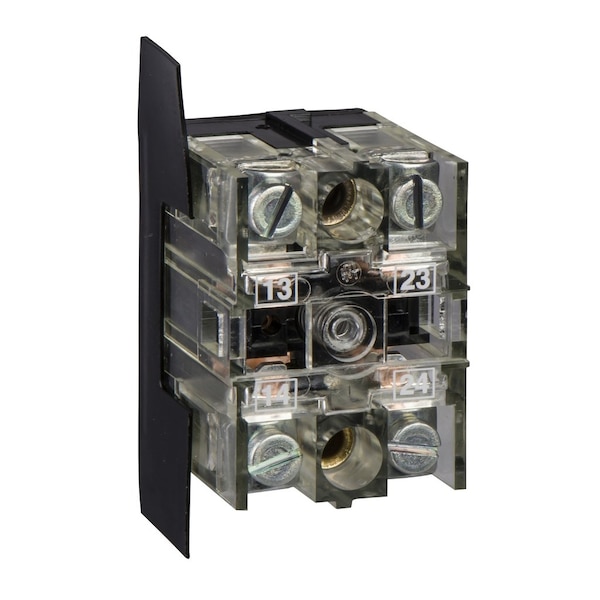

Pendant Station Contact 240Vac 3A Xac

product price: $44.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Standards EN 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-1
  • Terminals Description Iso N°1 (33-34)NO || (43-44)NO_CL
  • Shock Resistance 100 gn IEC 60068-2-27
  • Mechanical Interlocking without mechanical interlock
  • Contact Code Designation A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
See all product information

Product Information

Details

Item Contact Block
Standards EN 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-1
Terminals Description Iso N°1 (33-34)NO || (43-44)NO_CL
Shock Resistance 100 gn IEC 60068-2-27
Mechanical Interlocking without mechanical interlock
Contact Code Designation A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Rated Operational Power In W 31 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 35 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Short-Circuit Protection 10 A fuse protection cartridge gG
Connections - Terminals screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Contact Block Application 2-speed
Contact Block Type single
[Ithe] Conventional Enclosed Thermal Current 10 A
Contact Operation staggered || slow-break
Electrical Circuit Type control circuit
Mechanical Durability 1000000 cycles
Maximum Resistance Across Terminals 25 MOhm
Type Of Operator spring return
Ambient Air Temperature For Storage -40-70°C
[Ui] Rated Insulation Voltage 400 V 3)IEC 60947-1
Component Name XENB
Product Or Component Type contact block
Mounting Of Block front mounting
Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6
Rated Operational Power In Va 140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 210 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 640 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive || 680 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive
Ambient Air Temperature For Operation -25-70°C
Terminal Identifier (13-14)NO || (11-12)NC
Product Compatibility XACB || XACM
Contacts Type And Composition 2 NO
Terminals Description Iso N°1 (33-34)NO || (43-44)NO_CL
Includes Mounting Block Mounting Block Included
DC Contact Rating 0.27 A @ 250 V
Compatible with Series XACB, XACM
AC Contact Rating 3 A @ 240 V

Description

Contact Block
