- MFR #
- ZBE202
- Zoro #
- G100905431
- UPC #
- 3389110177459
- Country of Origin
- France
- Item
- Contact Blocks
- Contact Form
- 1NC
- Color
- Black
- Standards
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, GOST, IEC 60068-2-6, IP20 IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH, RoHS, UL, UL 508
- Contact Operation
- late-break
- Device Short Name
- ZBE
- Contacts Usage
- staggered contacts
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 600 V 3)EN 60947-1
- Protective Treatment
- TH
- Contact Block Type
- single
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Shape Of Screw Head
- cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
- Contacts Material
- silver alloy (Ag/Ni)
- Electrical Composition Code
- C1 9 ) || C2 7 ) || C3 6 ) || C4 4 ) || C5 5 ) || C6 3 ) || C7 4 ) || C8 2 ) || C9 3 ) || C12 6 ) || M1 6 ) || M2 4 ) || M3 4 ) || M5 2 ) || M6 2 ) || M7 6 ) || M8 4 ) || M9 2 ) || SF1 3 ) || SF2 2 ) || MF1 2 ) || MF2 2 ) || C10 2 ) || M4 2 ) || C13 1 )
- Mechanical Durability
- 10000000 cycles
- Ambient Air Temperature For Storage
- -40-70°C
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Contacts Type And Composition
- 1 NC
- Mounting Of Block
- front mounting
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- Ambient Air Temperature For Operation
- -40-70°C
- Operating Travel
- 4.3 mm total travel) || 2.4 mm NC changing electrical state)
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
- Product Or Component Type

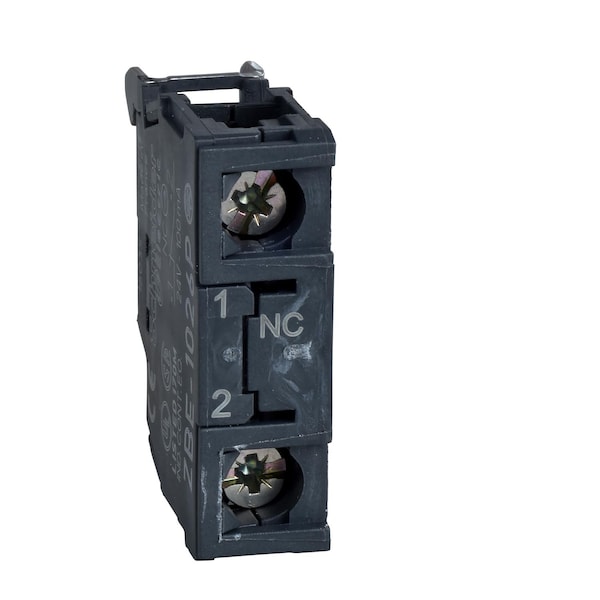

- contact block
- Operating Force
- 2 N NC changing electrical state
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP20 IEC 60529
- Product Certifications
- DNV || UL || LROS (Lloyds register of shipping) || CSA || BV || GOST || CCC || GL
- Range of Product
- Harmony XB4, Harmony XB5
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- AC Contact Rating
- 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
- Terminal Connection Type
- Screw Clamp Terminals
- Includes Mounting Block
- Mounting Block Included
- Switch Action
- Momentary/Late Break
- Compatible with Series
- XB4, XB5
- Compatible Operator
- Push Button, Selector Switch
