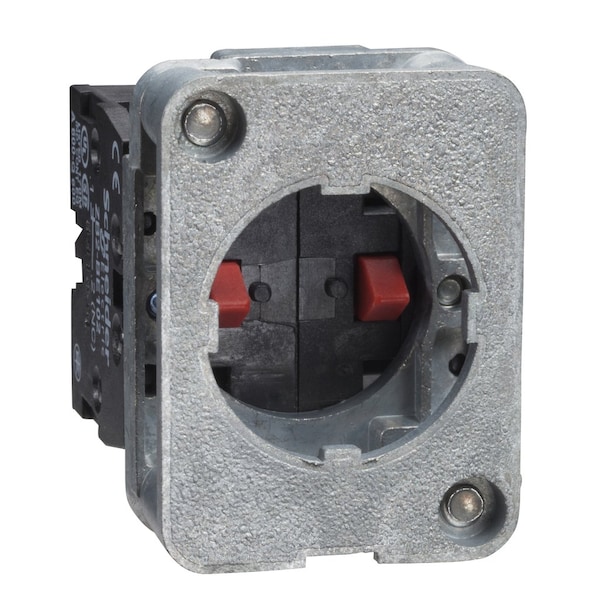

Pendant Station Contact

Pendant Push Button

CSA C22.2 No 14 || IEC 60947-5-1 || EN 60947-5-1

screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end

front mounting

30 mm

without mechanical interlock

42 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 45 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 60 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 385 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 455 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive || 525 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive

6 kV IEC 60947-1

spring return

contact block

control circuit

100 gn IEC 60068-2-27

25 MOhm

1000000 cycles

XACA || ZA2B to head

-40-70°C

1 NC + 1 NO

-25-70°C

15 gn 10-500 Hz)IEC 60068-2-6

(23-24)NO || (11-12)NC

(11-12)NC || (13-14)NO

500 V 3)IEC 60947-1

single

slow-break

10 A fuse protection cartridge gG

40 mm

XACS

A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A

10 A

screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end

(23-24)NO; (11-12)NC

10 A

(23-24)NO; (11-12)NC
