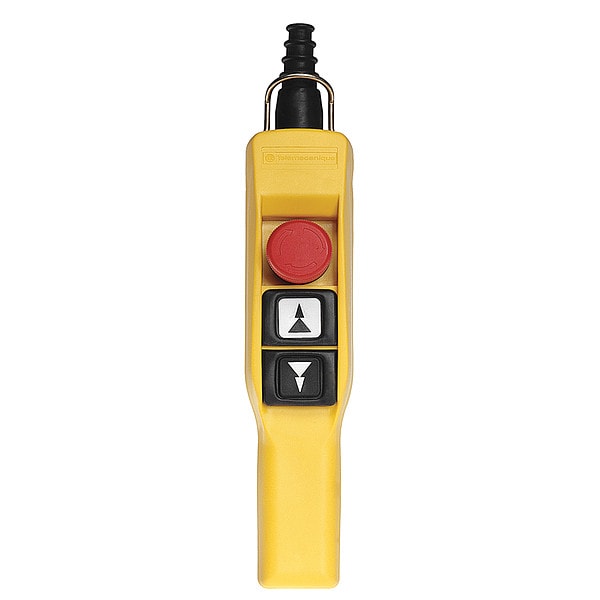

Schneider Electric PendantCntrlStn, DedEnd, 3Buttn, Blk/Rd/Wht XACA2173 - main

PendantCntrlStn, DedEnd, 3Buttn, Blk/Rd/Wht

  • Mfr # XACA2173

  • Zoro # G3463276

product price: $248.99
/ea
Free Shipping & Returns

Key Features

Legend
Emergency Stop
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
2NO/1NC
Number of Operators
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACA2173
Zoro #
G3463276
UPC #
389110558913
Country of Origin
France

Dimensions

Manufacturer Warranty Length
18 mo
Overall Depth
2.36 in
Overall Height
10.87 in
Hub Size - Maximum
9/16 in
Overall Width
1.97 in

Details

Item
Pendant Control Station
Legend
Emergency Stop
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
2NO/1NC
Number of Operators
3
Hub Style
Dead-End
Series
XACA
Contact Rating
slow-break || staggered
Standards
CSA, UL Listed
Housing Color
Yellow
Action
Maintained/Momentary/Momentary
Mechanical Interlock
Yes
Operator Color
Black, Red, White
Number of Speeds
2
IP Rating
IP65
Application
control of 2-speed hoist motor
Cable Entry
rubber sleeve with stepped entry 7-15 mm
Voltage
600 V
Terminal Connection
screw clamp terminal
Enclosure Color
Yellow
Enclosure Material
Plastic
Housing Material
Polypropylene
Product Type
Pendant Control Station
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V
Operator Configuration
(2) Push Buttons/Emergency Stop
NEMA Enclosure Rating
1, 4, 4X, 5
Maintained Action Release
Twist
Hazardous Location Specification
Not Rated
AC Contact Rating
1.2 A @ 600 V, 3 A @ 250 V
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Includes Mechanical Interlock
Mechanical Interlock Included

Description

Pendant Control Station, Number of Operators 3, Number of Pilot Lights 0, Legend Emergency Stop, Type of Operator Push Button, Action Maintained/Momentary/Momentary, Operator Color Black, Red, White, Contact Form 2NO/1NC, Mechanical Interlock Yes, IP Rating IP65, Enclosure Material Plastic, Enclosure Color Yellow, Standards CSA, UL Listed
