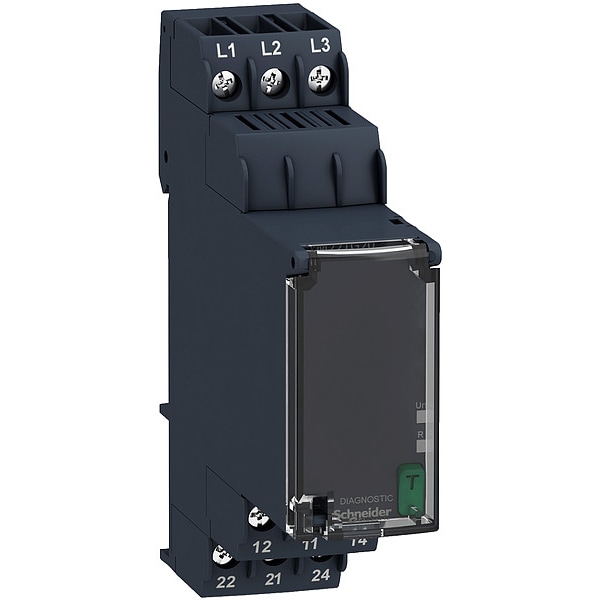

Phase Control Relay, 9 Pins, 183-528V AC

Phase Control Relay, 9 Pins, 183-528V AC

Mfr # RM22TG20
Zoro # G7123923

$97.19

Free Shipping & Returns

Key Features

Item - Relay

Phase Monitor Relay

AC Contact Rating - Relay

5A @ 250V

DC Contact Rating - Relay

7A @ 30V

Contact Form - Relay

SPDT

Mounting - Relay

Plug In

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

RM22TG20

Zoro #

G7123923

UPC #

Country of Origin

Indonesia

Dimensions

Body Width - Relay

0.89 in

Body Depth - Relay

2.87 in

Body Height - Relay

3.54 in

Body Width

0.89 in

Overall Depth

3.13 in

Body Depth

3.13 in

Body Height

3.54 in

Width

22.5 mm

Details

Item - Relay

Phase Monitor Relay

AC Contact Rating - Relay

5A @ 250V

DC Contact Rating - Relay

7A @ 30V

Contact Form - Relay

SPDT

Mounting - Relay

Plug In

Standards

C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed

Item

Phase Control Relay

Response Time

<= 200 ms

Contact Form

SPDT

Restart

Auto

Phase Unbalance

Input or Control Voltage

183 to 528V AC

Base Type - Plug In Relay

Octal

Phase Loss Sensitivity

Under Voltage

Phase Reversal

Over Voltage

Power Consumption

1,250 VA

Contact Rating (DC)

7 A @ 30V

Base Shape

Octal

Minimum Operating Temperature

-4 Degrees F

Mounting Style

DIN Rail

Number of Pins

Weight

3.2 oz

IP Rating

IP40

Maximum Switching Current

8 A

Restart Time Delay

1.5 sec

Current Rating

8 A

Input Voltage

183 to 528V AC

Electrical Operating Durability

100,000

Contact Rating (AC)

5 A @ 250V

Overvoltage

Monitored Parameters

Phase Failure, Phase Sequence

Housing Material

Plastic

Maximum Operating Temperature

122 Degrees F

Minimum Switching Current

10 mA

Mechanical Operating Durability

30,000,000

Maximum Switching Capacity

1,250 VA

Frequency

50/60 Hz

Maximum Switching Voltage

250V AC

Mounting Position

any position

Relay Monitored Parameters

phase sequence || phase failure detection (2 or more phase cut)

Supply Voltage Limits

183-528 V AC

Product Certifications

CE || EAC || RCM || GL || CSA || UL || CCC

[Us] Rated Supply Voltage

208...480 V AC

Run-Up Delay At Power-Up

650 ms

Contacts Type And Composition

2 C/O

Voltage Detection Threshold

< 100 V AC

Measurement Range

183...528 V voltage AC

Reset Time

1500 ms at maximum voltage

Ambient Air Temperature For Storage

-40-70°C

Control Circuit Voltage Limits

183...528 V AC

Mechanical Durability

10000000 cycles

Ip Degree Of Protection

IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

Power Consumption In Va

15-15 VA 480 V AC 60 Hz

Dielectric Test Voltage

2.5 kV AC 50 Hz, 1 min IEC 60255-27

Output Contacts

2 C/O

Mounting Support

35 mm DIN rail conforming to EN/IEC 60715

Insulation Resistance

> 100 MOhm 500 V DC IEC 60255-27

Utilisation Category

AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Product Or Component Type

3-phase control relay

Relay Type

control relay

Tightening Torque

0.6-1 N.m IEC 60947-1

Status Led

LED (Yellow) relay ON || LED (Green) power ON

Contacts Material

cadmium free

Relay Name

RM22TG

Overvoltage Category

III IEC 60664-1 || III UL 508

Time Delay Type

without

Immunity To Microbreaks

10 ms

Supply Frequency

50...60 Hz +/- 10 %

Vibration Resistance

0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Electrical Durability

100000 cycles

Switching Capacity In Va

2000 VA

Phase

3 phase

Relative Humidity

93-97 % 25-55°C IEC 60068-2-30

Electromagnetic Compatibility

immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22

Shock Resistance

15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Connections - Terminals

screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end

Ambient Air Temperature For Operation

-20-50°C 60 Hz || -20-60°C 50 Hz AC/DC

Pollution Degree

3 IEC 60664-1 || 3 UL 508

Description

Phase Control Relay, Base Shape Octal, Contact Form SPDT, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 7 A @ 30V, Current Rating 8 A, Flat Pin Width Not Applicable, Input Voltage 183 to 528V AC, Monitored Parameters Phase Failure, Phase Sequence, Number of Pins 9, Restart Auto, Restart Time Delay 1.5 sec, IP Rating IP40, Mounting Style DIN Rail, Body Depth 3.13 in, Body Height 3.54 in, Body Width 0.89 in, Electrical Operating Durability 100,000, Frequency 50/60 Hz
