  15. Pilot Light Complete, 22mm, White

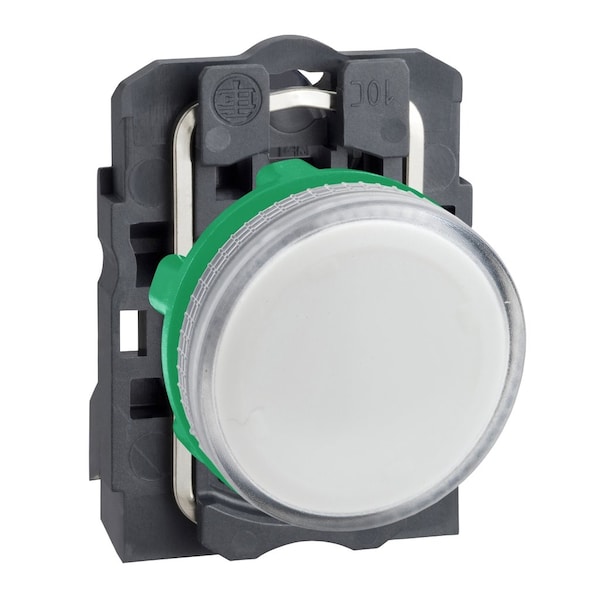

Schneider Electric Pilot Light Complete, 22mm, White XB5AV61 - main

Pilot Light Complete, 22mm, White

  • Mfr # XB5AV61

  • Zoro # G0261317

product price: $47.85
/ea

Key Features

Voltage
250V AC
Color
White
Lamp Type
No Lamp Module Included
Shape
Round
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XB5AV61
Zoro #
G0261317
UPC #
785901383949
Country of Origin
France

Dimensions

Size
22 mm
Overall Height
1.65 in
Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Depth
2.17 in
Overall Width
1.18 in
Height
42 mm
Mounting Diameter
0.87 in (22 mm)
Length
55 mm
Depth
2.17 in (55 mm)
Width
30 mm

Details

Item
Pilot Light
Voltage
250V AC
Color
White
Lamp Type
No Lamp Module Included
Shape
Round
Terminal Connection
Screw Clamp
Contact Form
(X1-X2)PL
Lens Material
Plastic
Bezel
Dark Grey Plastic
Lens Type
Smooth
Lamp Module Type
No Lamp Module Included
Basic Material
Plastic
Standards
CSA, REACH, RoHS, UL Listed, WEEE
NEMA Rating
13, 4X
Lamp Voltage
250V AC
Body Material
Plastic
Voltage Rating - Maximum
250 V AC
NEMA Enclosure Rating
13, 4X
IP Rating
IP66, IP67, IP69, IP69K
Lens Color
White
Lamp Color
White
Includes Lamp Module
Lamp Module Included
Lamp Voltage - Maximum
250 V AC
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Includes Lens
Lens Included
Series
XB5
Ambient Air Temperature For Operation
-40 to 131°F (-40 to 55°C)
Signalling Type
Steady
Vibration Resistance
5 gn 12 to 500 Hz)IEC 60068-2-6
Head Type
Standard
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Bezel Material
Dark Gray plastic
Electrical Shock Protection Class
Class II IEC 60536
Type
Steady Signal
IP Degree Of Protection
IP66 IEC 60529; IP67 IEC 60529; IP69 IEC 60529; IP69K ISO 20653
Device Presentation
Complete product
Rated Supply Voltage
Less than or Equal to 250 V
Resistance To High Pressure Washer
1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
Light Source
Bulb not included
Overvoltage Category
Class II IEC 60536
Bulb Base
BA 9s
IK Degree Of Protection
IK05 IEC 50102
Protective Treatment
TH
Rated Insulation Voltage
250 V 3)IEC 60947-1
NEMA Degree Of Protection
NEMA 13; NEMA 4X
Product Or Component Type
Pilot light
Light Block Supply
Direct Less than 2.4 W
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1
Product Certifications
UL Listed; CSA

Description

Pilot Light, Voltage 250V AC, Color White, Lamp Type No Lamp Module Included, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type No Lamp Module Included, Basic Material Plastic, Lens Type Smooth, Lamp Voltage 250V AC, Body Material Plastic, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Standards CSA, REACH, RoHS, UL Listed, WEEE
