  13. Pilot Light Complete, Green, LED
Shop All Indicator Lights
Schneider Electric

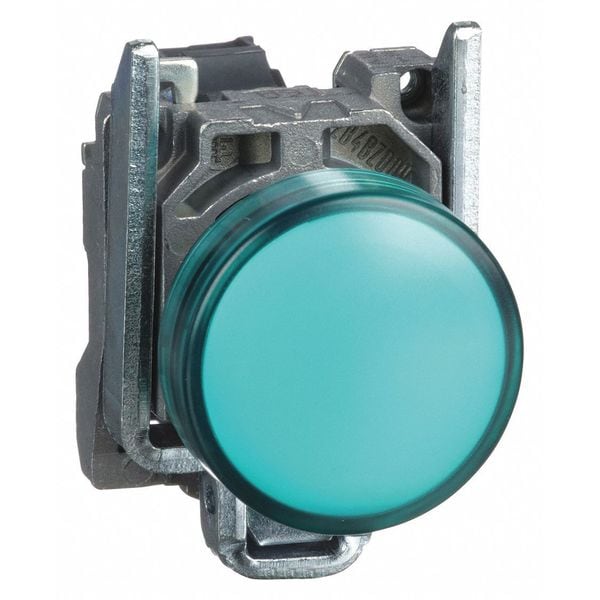

Pilot Light Complete, Green, LED

product price: $63.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC
  • Color Green
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 22 mm
Width 30 mm
Height 47 mm
Length 54 mm
Depth 2.13 in (54 mm)
Mounting Diameter 0.87 in (22 mm)
Panel Cutout Diameter 22 mm
Manufacturer Warranty Length 18 mo
Overall Height 1.85 in
Overall Depth 2.13 in
Overall Width 1.18 in

Details

Item Pilot Light
Voltage 24V AC
Color Green
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Contact Form (X1-X2)PL
Bezel Chromium Plated Metal
Lens Material Plastic
Lens Type Smooth
Lamp Module Type Full Voltage
Basic Material Metal
IP Rating IP66, IP67, IP69, IP69K
Standards CSA, REACH, RoHS, UL Listed, WEEE
NEMA Rating 13, 4, 4X
Includes Light Module
Body Material Metal
Average Life 100000 hr
Type Steady Signal
IK Degree Of Protection IK06 IEC 50102
Light Source Universal LED
Rated Insulation Voltage 250 V 3)IEC 60947-1
Service Life 100000 h at rated voltage and 25°C
Resistance To High Pressure Washer 1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
Bulb Base Integral LED
Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
Product Or Component Type Pilot light
Ambient Air Temperature For Storage -40 to 158°F (-40 to 70°C)
Surge Withstand 1 kV IEC 61000-4-5
IP Degree Of Protection IP66 IEC 60529; IP67; IP69; IP69K
Product Certifications CSA; UL Listed
Rated Impulse Withstand Voltage 4 kV IEC 60947-1
Signalling Type Steady
Electrical Shock Protection Class Class I IEC 60536
Fixing Collar Material Zamak
Protective Treatment TH
Electromagnetic Emission Class B IEC 55011
Resistance To Electromagnetic Fields 9.14 V/m (10 V/m) IEC 61000-4-3
Device Presentation Complete product
Ambient Air Temperature For Operation -40 to 158°F (-40 to 70°C)
NEMA Degree Of Protection NEMA 13; NEMA 4X
Rated Supply Voltage 24 V AC/DC 50/60 Hz
Resistance To Fast Transients 2 kV IEC 61000-4-4
Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1
Vibration Resistance 5 gn 12 to 500 Hz)IEC 60068-2-6
Supply Voltage Limits 19.2 to 30 V DC; 21.6 to 26.4 V AC
Head Type Standard
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Current Consumption 18 mA
Body Finish Chrome Plated
Series XB4
NEMA Enclosure Rating 13, 4X
Includes Lens Lens Included
Includes Push-To-Test No Push-To-Test Included
Lens Color Green
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Voltage Rating - Maximum 24 V AC/DC
Lamp Color Green
Includes Lamp Module Lamp Module Included

Description

Pilot Light, Voltage 24V AC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Smooth, Body Material Metal, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Includes Light Module, Standards CSA, REACH, RoHS, UL Listed, WEEE
