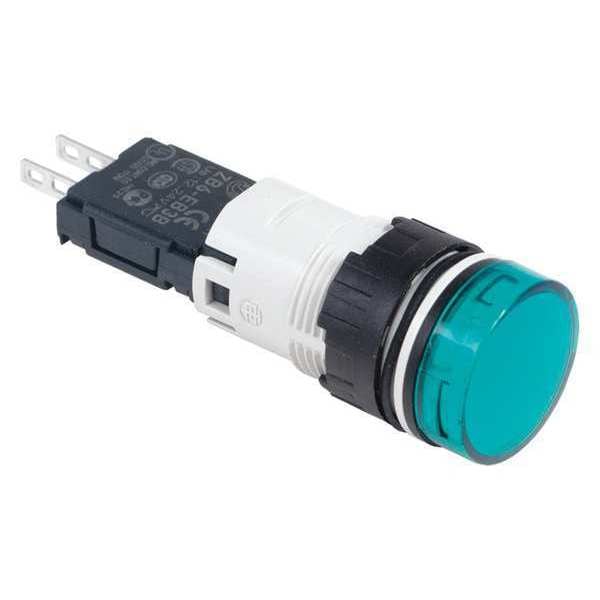

Schneider Electric Pilot Light Complete, LED, Green XB6AV3BB - main

Pilot Light Complete, LED, Green

  • Mfr # XB6AV3BB

  • Zoro # G0105080

product price: $22.59
/ea

Key Features

Voltage
24V AC/DC
Color
Green
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6AV3BB
Zoro #
G0105080
UPC #
785901325604
Country of Origin
Mexico

Dimensions

Size
16 mm
Width
18 mm
Height
18 mm
Length
57 mm
Depth
2.24 in (57 mm)
Mounting Diameter
0.63 in (16 mm)
Overall Height
0.71 in
Overall Depth
2.24 in
Overall Width
0.71 in
Panel Cutout Diameter
16 mm
Manufacturer Warranty Length
18 mo

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
Green
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
Contact Form
(+ -)PL
Lens Material
Plastic
Bezel
Plastic
Lens Type
Smooth
Lamp Module Type
Full Voltage
Basic Material
Plastic
Body Material
Plastic
IP Rating
IP65
Replacement Lamps
4VW69
NEMA Rating
1, 12
Lamp Voltage
24V AC/DC
Standards
CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
Type
Steady Signal
Rated Supply Voltage
12 to 24 V AC/DC
Signalling Type
Steady
Resistance To Fast Transients
2 kV IEC 61000-4-4
Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Product Or Component Type
Complete pilot light
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
Surge Withstand
1 kV direct contact IEC 61000-4-5; 2 kV in free air IEC 61000-4-5
Vibration Resistance
+/- 3 mm 2 to 500 Hz)IEC 60068-2-6; 5 gn 2 to 500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Electrical Shock Protection Class
Class II IEC 61140
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Protective Treatment
TC
Electromagnetic Emission
Class B EN 55011
IP Degree Of Protection
IP65 IEC 60529
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Operating Position
Any position
Supply Voltage Limits
6 to 30 V AC/DC
Light Block Supply
Direct
Product Certifications
UL; CCC; GOST; CSA
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
NEMA Degree Of Protection
NEMA 13 UL 50; NEMA 4 UL 50; NEMA 4X UL 50; NEMA 13 CSA C22.2 No 94; NEMA 4 CSA C22.2 No 94; NEMA 4X CSA C22.2 No 94
Bulb Base
Integral LED
Current Consumption
15 mA
Lens Color
Green
Includes Lens
Lens Included
Includes Lamp Module
Lamp Module Included
Lamp Color
Green
NEMA Enclosure Rating
13, 4, 4X
Includes Push-To-Test
No Push-To-Test Included
Voltage Rating - Maximum
24 V AC/DC
Series
XB6
Lamp Voltage - Maximum
24 V AC/DC
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof

Description

Pilot Light, Voltage 24V AC/DC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Faston Connector, Lens Material Plastic, 16 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Smooth, Lamp Voltage 24V AC/DC, Replacement Lamps 4VW69, Body Material Plastic, NEMA Rating 1, 12, IP Rating IP65, Standards CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
