  15. Pilot light, Harmony XB4, metal, red, 22mm, universal LED, plain lens, 230.240V AC

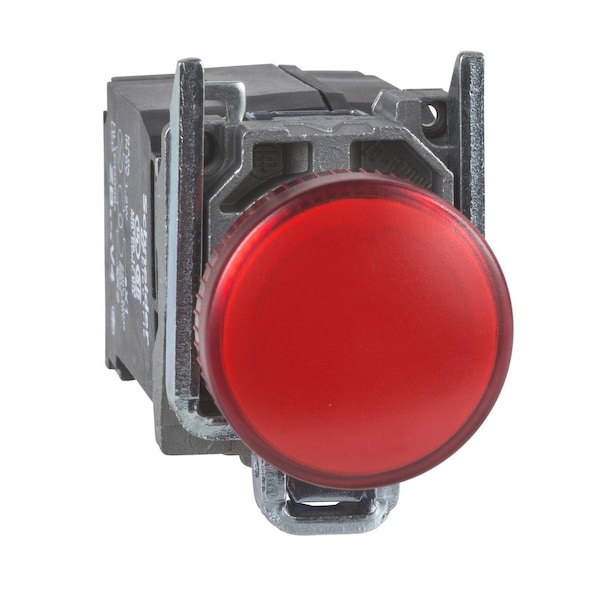

Schneider Electric Pilot light, Harmony XB4, metal, red, 22mm, universal LED, plain lens, 230.240V AC XB4BVM4 - main

Pilot light, Harmony XB4, metal, red, 22mm, universal LED, plain lens, 230.240V AC

  • Mfr # XB4BVM4

  • Zoro # G7654764

product price: $64.65
/ea

Key Features

NEMA Rating
NEMA 13 || NEMA 4X
Housing Color
red
Standards
CSA || UL Listed
Voltage
250 V
Operator Color
red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BVM4
Zoro #
G7654764
UPC #
-
Country of Origin
France

Dimensions

Width
30 mm
Depth
54 mm
Height
47 mm
Mounting Diameter
22.5 mm

Details

Item
Red Pilot Light W/Protected Led 230Vac 2
NEMA Rating
NEMA 13 || NEMA 4X
Housing Color
red
Standards
CSA || UL Listed
Voltage
250 V
Operator Color
red
IP Rating
IP66 IEC 60529 || IP67 || IP69 || IP69K
Header
standard
Lamp Type
universal LED
Terminal Connection
screw clamp terminal
Ambient Air Temperature For Operation
-40-70°C
Protective Treatment
TH
Fixing Collar Material
zamak
Electromagnetic Emission
class B IEC 55011
Vibration Resistance
5 gn 12-500 Hz)IEC 60068-2-6
Resistance To Fast Transients
2 kV IEC 61000-4-4
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Current Consumption
14 mA
Operator Additional Information
with plain lens
Product or Component Type
pilot light
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Signalling Type
steady
Shape of Signaling Unit Head
round
Service Life
100000 h at rated voltage and 25°C
Terminals Description Iso N°1
(X1-X2)PL
[Us] Rated Supply Voltage
230...240 V AC 50/60 Hz
Bezel Material
chromium plated metal
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Device Short Name
XB4
Bulb Base
integral LED
Device Presentation
complete product
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Supply Voltage Limits
195-264 V AC
Range of Product
Harmony XB4
Electrical Shock Protection Class
class I IEC 60536
Ik Degree of Protection
IK06 conforming to IEC 50102
Surge Withstand
1 kV IEC 61000-4-5

Description

Red Pilot Light W/Protected Led 230Vac 2
